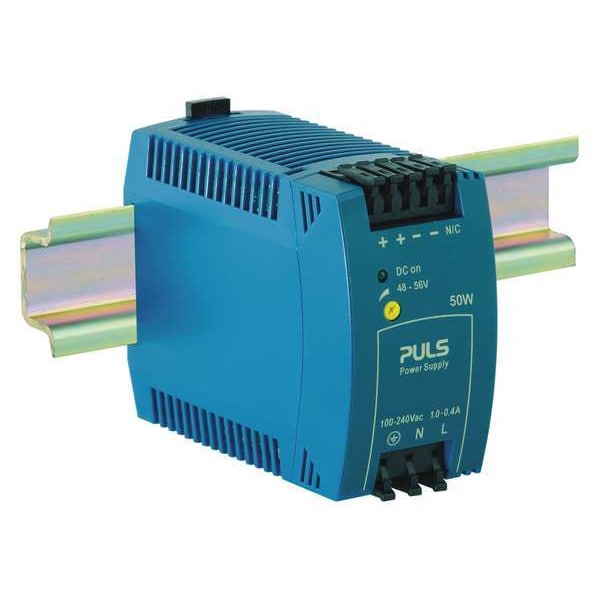

DC Power Supply, 100/240V AC, 48/56V DC, 50W, 1.05A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 48/56V DC |
| Power Rating | 50 W |
| Output Amps | 1.05 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 75 mm |
| Width | 45 mm |
| Depth | 91 mm |
| Hz | 50/60 Hz |
| Output Noise | 200 mV |
| Series | MiniLine |
| IP Rating | IP20 |
| Operating Temp. Range | -10 to 70 deg C |
| Features | High Efficiency and Long Lifetime |
| Standards | NEC Class 2 Listed |
| Hold Up Time | 40 msec |
| Status Indicator | Green LED |
| Connection | Spring Clamps |
| Adjustment range | 48 to 56 V |
| Power factor | 0.52 |
| Efficiency, typ. | 0.9 |
| Derating | 1.3W/°C for >+60°C |
| MTBF SN 29500 @ 40°C (h) | 600,000 h |
| Ripple and noise voltage max. | 50 mVpp |
| External input fuse recommendation | B-10A, C-6A |
| Input inrush current limitation | NTC |
| Power losses, typ. | 6 W |
| Input inrush current | 17A / 35A |
| Housing Material | Plastic |
| Operating Temperature - Maximum | 158 deg F |
| Wire Size - Minimum | 28 AWG |
| Output Power - Rated | 50 W |
| Wire Connection Type | Terminals |
| Current - Output | 1.1 A |
| Operating Temperature - Minimum | 14 deg F |
| Maximum Efficiency @ 230V AC | 90% |
| Mean Time Between Failures (MTBF) | 600,000 hr |
| Wire Size - Maximum | 12 AWG |
| Current - Inrush | 35 A |
| Package Quantity | 1 |
