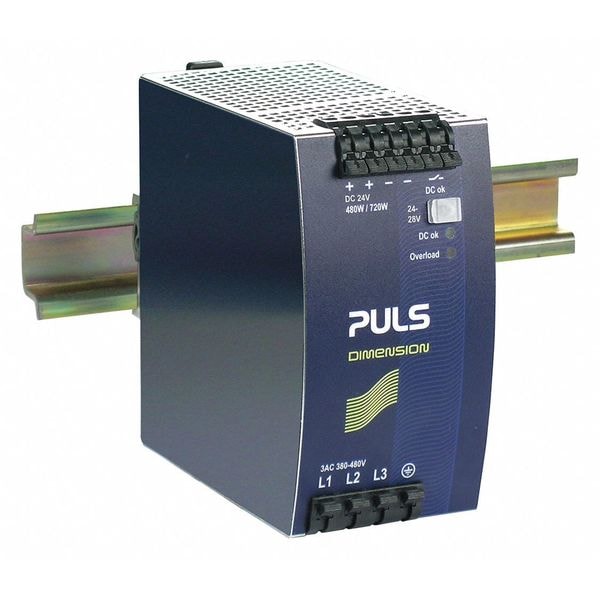

DC Power Supply, 380/480V AC, 24/28V DC, 480W, 20A, DIN Rail
| CAD Available | Yes |
|---|---|
| Item | DC Power Supply |
| Input Voltage | 380/480V AC |
| Output Voltage | 24/28V DC |
| Power Rating | 480 W |
| Output Amps | 20 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Three |
| Style | Switching |
| Height | 124 mm |
| Width | 65 mm |
| Depth | 127 mm |
| Hz | 50/60 Hz |
| Hold Up Time | 22 msec |
| IP Rating | IP20 |
| Series | Q |
| Output Noise | 100 mV |
| Status Indicator | DC OK Signal |
| Peak Amps | 30 |
| Standards | Class I Div. 2 Canada - CSA (217 KB), Class I Div. 2 USA - CSA (217 KB), EU Declaration of Conformity (61 KB), IEC 60950 CB Scheme (122 KB), Korea Certification (283 KB), Marine DNV (219 KB), SEMI F47 (2 MB), UK Declaration of Conformity (61 KB), UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA |
| Features | High Efficiency and Long Lifetime |
| Operating Temp. Range | -25 to 70 deg C |
| Connection | Spring Clamps |
| External input fuse recommendation | B-6A / C-3A |
| Efficiency, typ. | 0.95 |
| Derating | 12W/°C for >+60°C |
| DC-OK signal | yes |
| Input inrush current | 3 A |
| Power reserves | 50% BonusPower |
| Power factor | 0.94 |
| Harmonic correction | active |
| Power losses, typ. | 25.3 W |
| Adjustment range | 24 to 28 V |
| MTBF SN 29500 @ 40°C (h) | 690,000 h |
| Input inrush current limitation | active |
| Ripple and noise voltage max. | 100 mVpp |
| Output Power - Rated | 480 W |
| Current - Peak | 10 A |
| Start Up Time - Maximum | 350 msec |
| Wire Connection Type | Terminals |
| Special Features | Active Filtering of Input Transients |
| Operating Temperature - Maximum | 158 deg F |
| Mean Time Between Failures (MTBF) | 690,000 hr |
| Operating Temperature - Minimum | -13 deg F |
| Wire Size - Maximum | 10 AWG |
| Current - Inrush | 3 A |
| Current - Output | 20 A |
| Manufacturer Warranty | 3 yr |
| Housing Material | Plastic |
| Input Frequency - Nominal | 50/60 Hz |
| Package Quantity | 1 |
