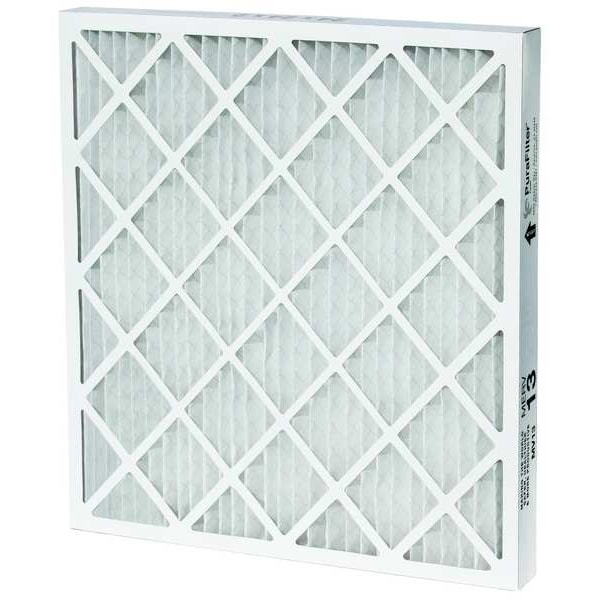

12x24x1 Pleated Air Filter, High Capacity, Synthetic, MERV 13, 1.0 to 3.0 micron
| Performance Rating | MERV 13 |
|---|---|
| Air Filter Capacity | High Capacity |
| Air Flow @ 300 fpm | 833 cfm |
| Media Material | Synthetic |
| Nominal Filter Size | 12x24x1 |
| Actual Filter Size | 11-1/2 in x 23-3/8 in x 3/4 in |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13- 16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments |
| Frame or Header Material | Beverage Board |
| Item | Pleated Air Filter |
| Nominal Depth | 1 in |
| Nominal Height | 12 in |
| Nominal Width | 24 in |
| Style - Air Filters | Panel |
| Initial Resistance @ 500 fpm | 0.37 in wc |
| Filter Efficiency - Air Filters | 85% |
| Gasket Material | None |
| Standards | ASHRAE 52.2, UL 900 |
| Media Area | 5.1 sq ft |
| Filter Frame Color | White |
| Air Flow @ 500 fpm | 1,389 cfm |
| Media Color | White |
| Actual Width | 23-1/2 in |
| Initial Resistance @ 300 fpm | 0.22 in wc |
| Actual Height | 11-1/2 in |
| Max. Temp. | 180 deg F |
| Max. Velocity | 500 fpm |
| Final Recommended Resistance | 1 in wc |
| Pleats per Linear Foot | 15 |
| Air Filter Item | Pleated Air Filter |
| Actual Depth | 3/4 in |
| Removes Particles Down To | 1.0 to 3.0 micron |
| Common Applications | LEED/Green |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
