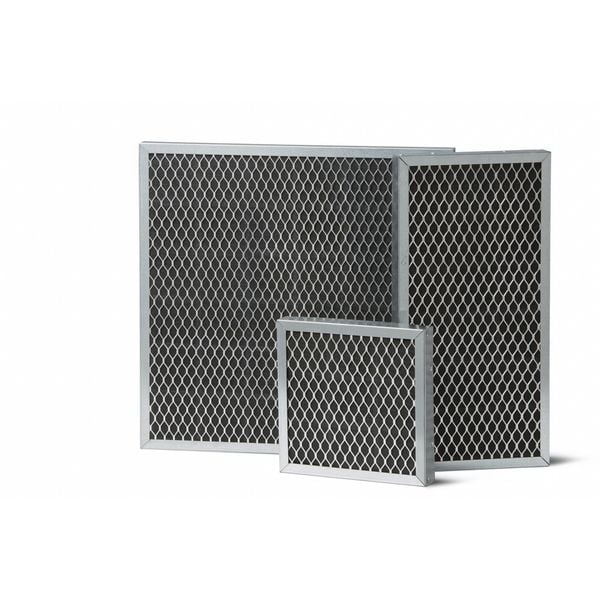

Odor Removal Chemical Filter, 12"x24"x2
| Nominal Filter Size | 12 x 24 x 2 |
|---|---|
| Actual Filter Size | 11-3/8 in x 23-3/8 in x 1-3/4 in |
| Media Material | Impregnated Carbon |
| Actual Width | 23 3/8 in |
| Media Area | 1.37 sq ft |
| Filters Out | Gaseous Contaminants, Volatile Organic Compounds |
| Filter Efficiency - Air Filters | Not Applicable |
| Nominal Height | 12 in |
| Recommended Final Resistance | Not Applicable |
| Common Applications | Heavy-Duty Odor Removal |
| Initial Resistance @ 500 fpm | 0.29 IWG |
| Style - Air Filters | Rigid Cell |
| Gasket Material | None |
| Air Flow @ 500 fpm | 1,000 cfm |
| Standards | Not Applicable |
| Performance Rating | Odor Removal |
| Media Color | Black |
| Max. Temp. | 180 deg F |
| Actual Height | 11-3/8 in |
| Final Recommended Resistance | Not Applicable |
| Carbon Concentration | 953 g/sq ft |
| Actual Depth | 1-3/4 in |
| Gasket Location | None |
| Nominal Depth | 2 in |
| Pleats per Linear Foot | Not Applicable |
| Item | Odor Removal Chemical Filter |
| Air Filter Item | Odor Removal Non-Pleated Air Filter |
| Nominal Width | 24 in |
| Max. Velocity | 500 fpm |
| Initial Resistance @ 300 fpm | 0.13 IWG |
| Frame or Header Material | Galvanized steel |
| Air Flow @ 300 fpm | 600 cfm |
| CCL4 Activity | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
