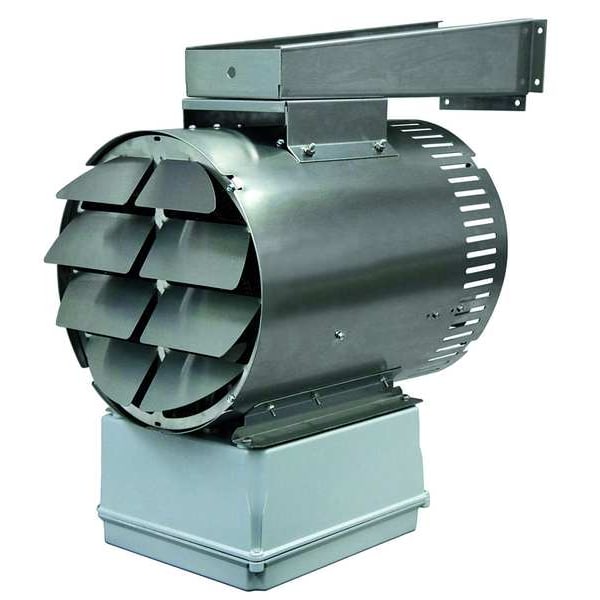

Electric Washdown Heater, 17060 BtuH, 480V
| Heater Voltage | 480VAC |
|---|---|
| BtuH | 17,060 |
| kW | 5 |
| Amps AC | 6 A |
| Air Flow | 700 cfm |
| Phase | 3 |
| Item | Washdown Electric Wall & Ceiling Unit Heater |
| Standards | cETLus |
| Depth | 18 in |
| Housing Material | 16 Gauge 304 Stainless Steel |
| Features | Totally Enclosed Motor |
| Grille | Stainless Steel |
| Width | 13 in |
| Includes | Thermostat, Pilot Light, Mode Selector Switch |
| Manufacturers Warranty Length | 1 yr |
| Hz | 60 |
| Height | 19-1/2 in |
| Temp. Rise | 23 deg F |
| Voltage | 480V AC |
| Overall Width | 13 in |
| Overall Height | 19-1/2 in |
| Wattage Output | 5 kW |
| Grille Finish | Stainless Steel |
| Air Temp. Rise | 23 deg F |
| Housing Color | Silver |
| Housing Finish | Epoxy Coated |
| Grille Height | 13 in |
| Grille Material | Stainless Steel |
| Voltage, Phase | 480V AC, 3-phase |
| Overall Dimensions - H x W x D | 19-1/2 in x 13 in x 18 in |
| Heating Method | Fan Forced |
| Heating Capacity | 17,060 BtuH |
| Amperage | 6.4 A |
| Grille Depth | 1/4 in |
| Grille Width | 13 in |
| Frequency | 60 Hz |
| Overall Depth | 18 in |
| Control Type | Mechanical Selector Dial |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
