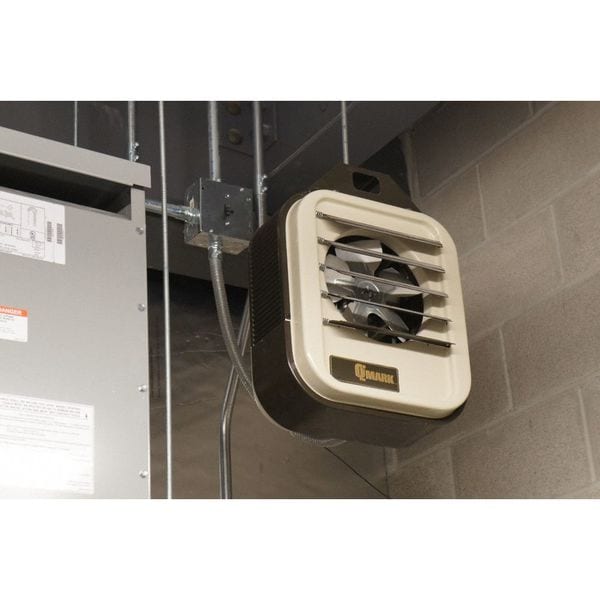

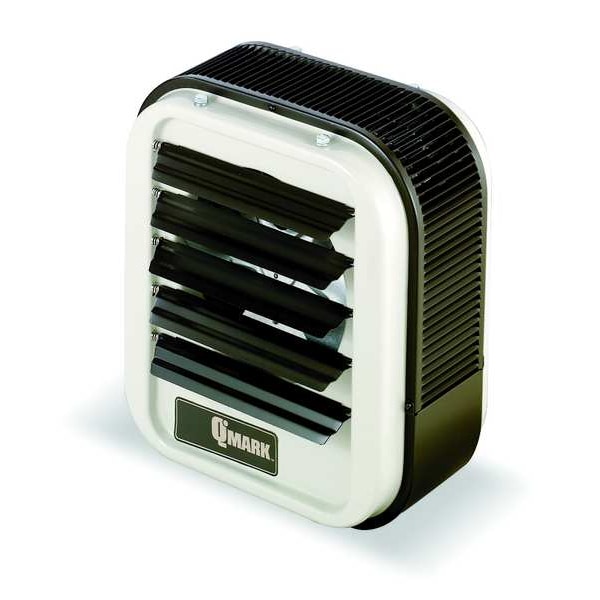

Fan Forced Electric Unit Heater, Wall & Ceiling, 1 or 3 Phase, 208/240VAC, 7.5kW/10kW, 21-3/4 in H
| Wattage Output | 7.5kW/10kW |
|---|---|
| Heating Capacity | 25,600/34,100 BtuH |
| Voltage | 208/240VAC |
| Air Temp. Rise | 49°F |
| Air Flow | 650 cfm |
| Phase | 1 or 3 |
| Item | Electric Unit Heater |
| Amperage | 36A, 42A |
| Standards | UL, NEC, OSHA |
| Vertical Floor Coverage | 14 ft |
| Mounting Type | Wall & Ceiling |
| Switch Type | 3 Pole |
| Requires | G4974864 |
| Horizontal Air Throw | 18 ft |
| Manufacturers Warranty Length | 1 yr (Parts), 5 yr (Elements) |
| Features | Enclosed Motor, Adjustable Louvers, Fan-Delay, Auto Reset |
| Housing Material | Steel |
| Vertical Mounting H | 14 ft |
| Contactor Coil Voltage | 24V AC |
| Housing Finish | Polyester Powder Coated |
| Includes | Adjustable Air Outlet Louvers |
| Overall Width | 19 in |
| Overall Height | 21-3/4 in |
| Overall Depth | 7-1/2 in |
| Overall Dimensions - H x W x D | 21-3/4 in x 19 in x 7-1/2 in |
| Control Type | Mechanical Selector Dial |
| Heating Method | Fan Forced |
| Housing Color | Beige |
| Frequency | 60 Hz |
| Voltage, Phase | 208/240V AC, 1 or 3-phase |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
