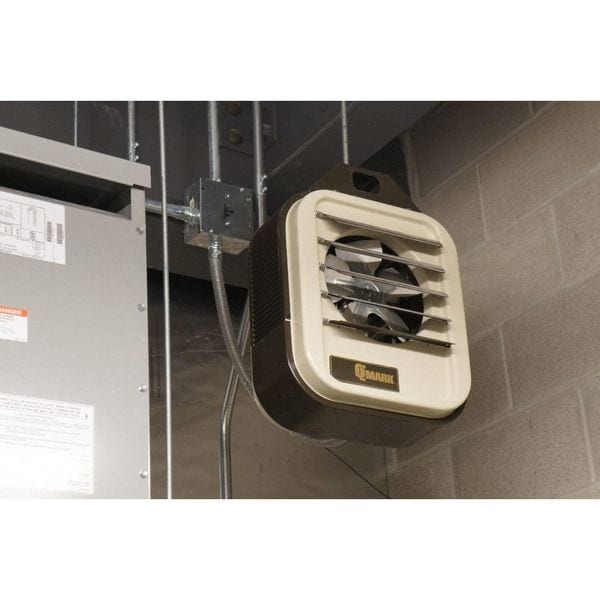

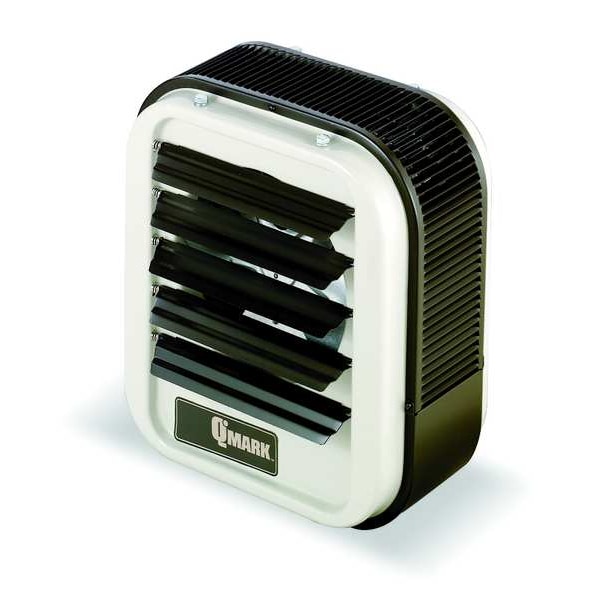

Fan Forced Electric Unit Heater, Wall & Ceiling, 1 Phase, 208/240VAC, 2.2kW/3kW, 16 in H, 14 in W
| Wattage Output | 2.2kW/3kW |
|---|---|
| Heating Capacity | 7,500/10,200 BtuH |
| Voltage | 208/240VAC |
| Air Temp. Rise | 27°F |
| Air Flow | 350 cfm |
| Phase | 1 |
| Item | Electric Unit Heater |
| Amperage | 11A / 12.5A |
| Mounting Type | Wall & Ceiling |
| Housing Material | Steel |
| Features | Enclosed Motor, Adjustable Louvers, Fan-Delay, Auto Reset |
| Vertical Mounting H | 9 ft |
| Requires | G4974864 |
| Switch Type | 3 Pole |
| Vertical Floor Coverage | 9 ft |
| Manufacturers Warranty Length | 1 yr (Parts), 5 yr (Elements) |
| Housing Finish | Polyester Powder Coated |
| Standards | UL, NEC, OSHA |
| Horizontal Air Throw | 12 ft |
| Contactor Coil Voltage | 208/240V AC |
| Includes | Adjustable Air Outlet Louvers |
| Overall Width | 14 in |
| Overall Height | 16 in |
| Frequency | 60 Hz |
| Heating Method | Fan Forced |
| Housing Color | Beige |
| Voltage, Phase | 208/240V AC, 1-phase |
| Overall Depth | 7-1/2 in |
| Overall Dimensions - H x W x D | 16 in x 14 in x 7-1/2 in |
| Control Type | Mechanical Selector Dial |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
