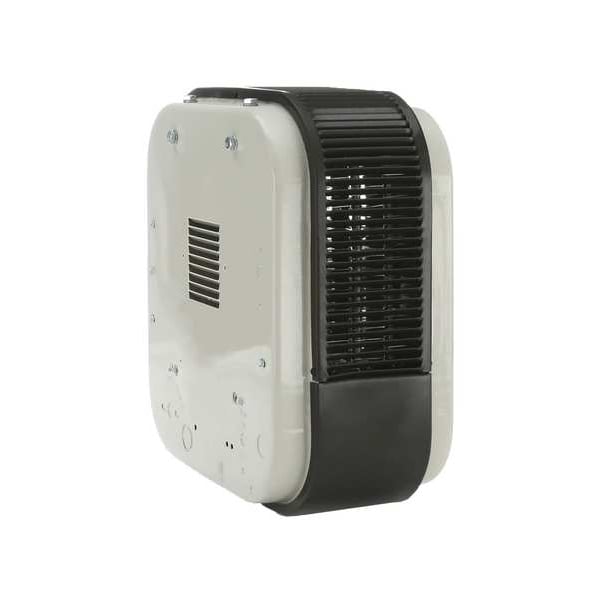

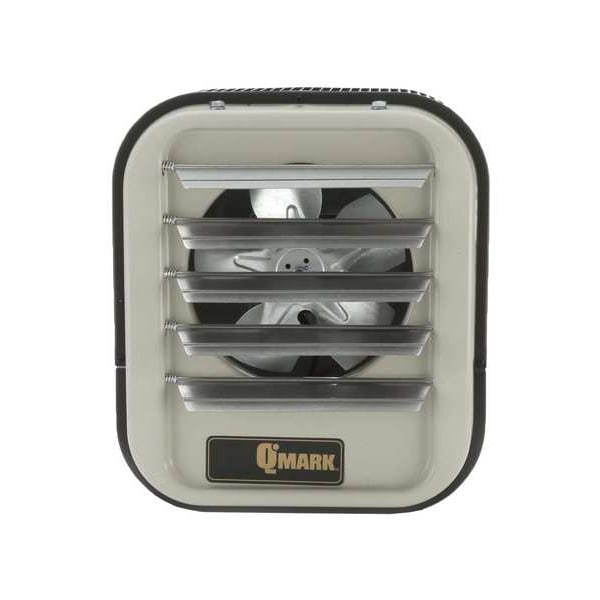

MUH-Pro includes a pre-installed disconnect switch, 24 VAC transformer and single-stage thermostat
| Includes | Adjustable Air Outlet Louvers |
|---|---|
| Item | MUH-Pro includes a pre-installed disconnect switch, 24 VAC transformer and single-stage thermostat |
| Voltage | 208/240 V AC |
| Frequency | 60 Hz |
| Heating Method | Fan Forced |
| Housing Color | Beige |
| Electrical Connection | Hardwired |
| Standards | cULus Listed |
| Wattage Output | 5 kW |
| NEMA Plug Configuration | Hard wired |
| Housing Material | Steel |
| For Use Outdoors | Indoor, Outdoor |
| Max. Operating Temp. | 90 Degrees F |
| Housing Finish | Powder Coated |
| Overall Width | 14 in |
| Phase | 1, 3 |
| Overall Height | 16 in |
| Control Type | Mechanical Selector Dial |
| Overall Length | 14 in |
| Element Type | Aluminum-finned Clad, Copper, Steel Sheath |
| Overall Depth | 7-1/2 in |
| Heating Capacity | 17,060 BtuH |
| Amperage | 18 A, 21 A |
| Air Temp. Rise | 45 deg F |
| Air Flow | 350 cfm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
