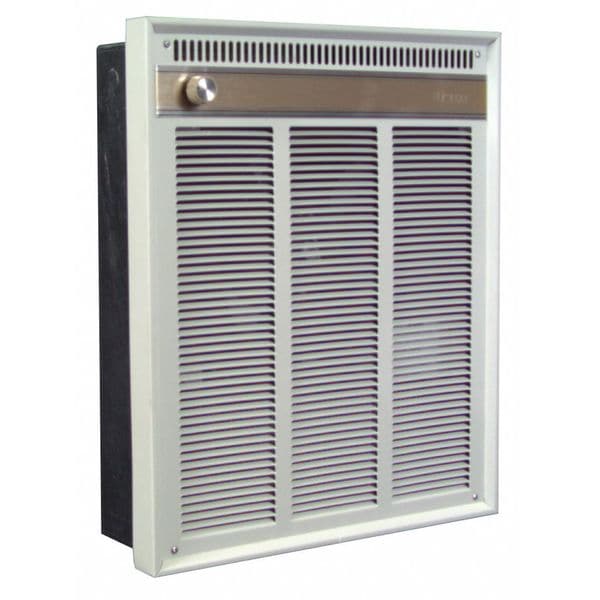

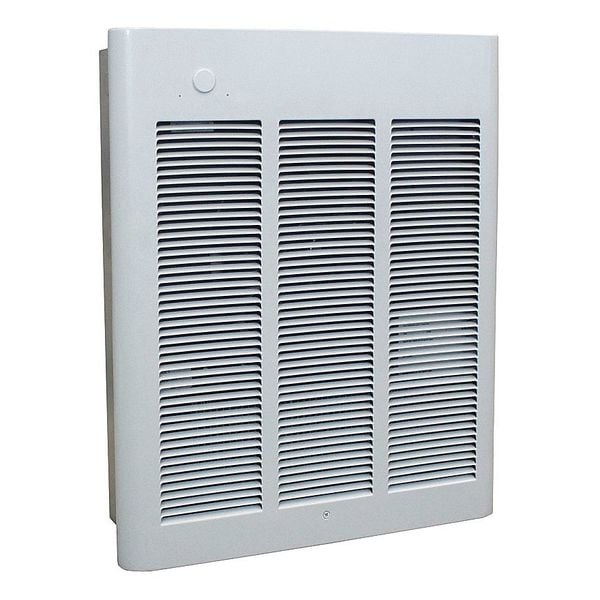

Recessed Electric Wall-Mount Heater, Recessed or Surface, 3000/1500 W, 277V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Commercial/Industrial |
| Watts | 3000/1500 |
| BtuH | 10,236/5,118 |
| Heater Voltage | 277 V AC |
| Electric Heater Phase | 1 |
| Wall Opening Width | 14-5/16" |
| Color | White |
| Amps AC | 11.0/5.4 |
| Wall Opening Depth | 3-7/8" |
| Housing Height | 18-1/4 in |
| Item | Recessed Electric Wall-Mount Heater |
| Grille Depth | 7/8 in |
| Finish | Powder Paint |
| Grille Material | Steel |
| Hz | 60 |
| Grille Height | 19-5/16 in |
| Mounting Type | Recessed or Surface |
| Housing Width | 14-5/16 in |
| Wall Opening Height | 18-1/4 in |
| Housing Depth | 3-3/4 in |
| Features | Thermostat and On/Off Switch |
| Grille Width | 15-3/4 in |
| Air Temp. Rise | 105 deg F |
| Standards | cETL, UL standard 2021 |
| Voltage | 277V AC |
| Phase | 1 |
| Air Flow | 100 cfm |
| Includes | Built-in Thermal Cutout, Fan Delay Switch |
| Wattage Field Convertible | Yes |
| Disconnect Switch | Yes |
| Grille Finish | Powder Coated |
| Grille Color | White |
| Rough-In Dimensions - H x W x D | 18-1/4 in x 14-5/16 in x 3-7/8 in |
| Hold Function | No |
| Building Management System Compatible | No |
| Minimum Mounting Height from Floor | 8 in |
| Housing Material | Steel |
| Wattage Output | 1500 W/3000 W |
| Setback Control | No |
| Remote Control Functions | No Remote Control Included |
| Tamper Resistant | No |
| Control Type | Mechanical Selector Dial |
| Thermal Overheat Protection | Manual Reset |
| Rough-In Width | 14-5/16 in |
| Automatic Fan Delay (On/Off) | Yes |
| Heater Mounting Position | Horizontal Burn |
| Thermostat Included | Unit-Mounted |
| Programming Capability | Not Programmable |
| Thermostat Contact Type | Double Pole |
| Rough-In Height | 18-1/4 in |
| Rough-In Depth | 3-7/8 in |
| Fan Only Operation | Yes |
| Heating Method | Fan Forced |
| Heating Capacity | 5,118/10,236 BtuH |
| Filter Included | No |
| Occupancy Sensor | No |
| Minimum Mounting Distance from Ceiling | 8 in |
| Smart Connectivity | No Connectivity |
| Frequency | 60 Hz |
| Voltage, Phase | 277V AC, 1-phase |
| Amperage | 5.4 A/10.8 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
