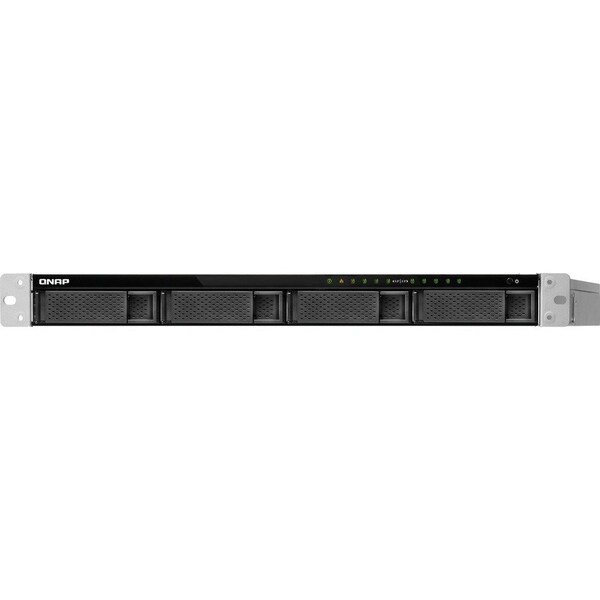

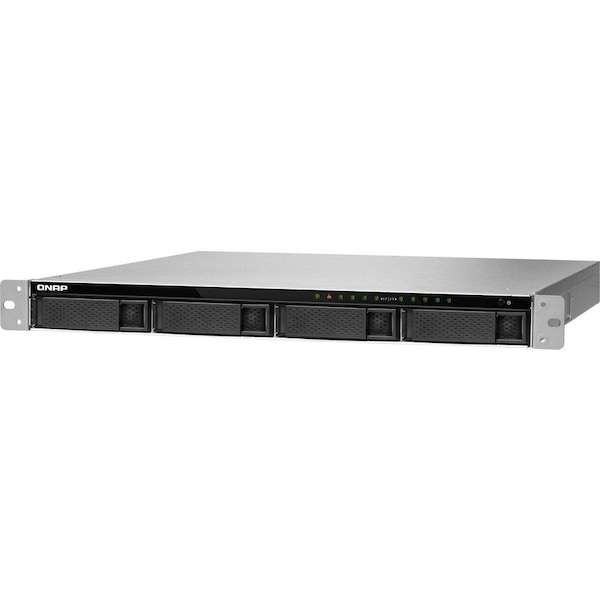

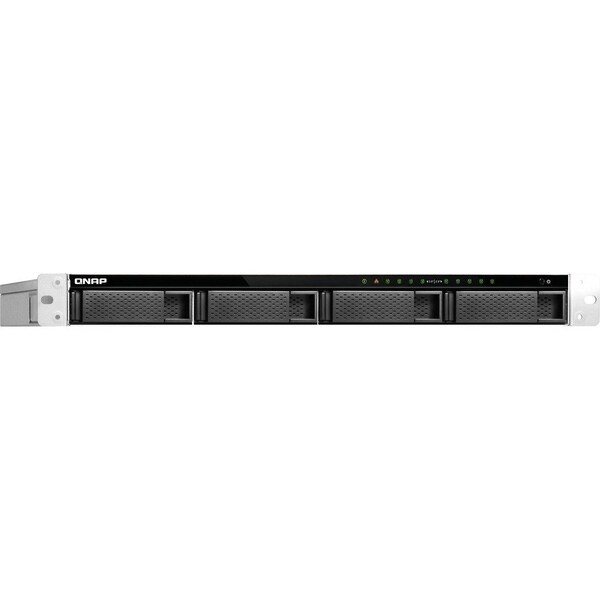

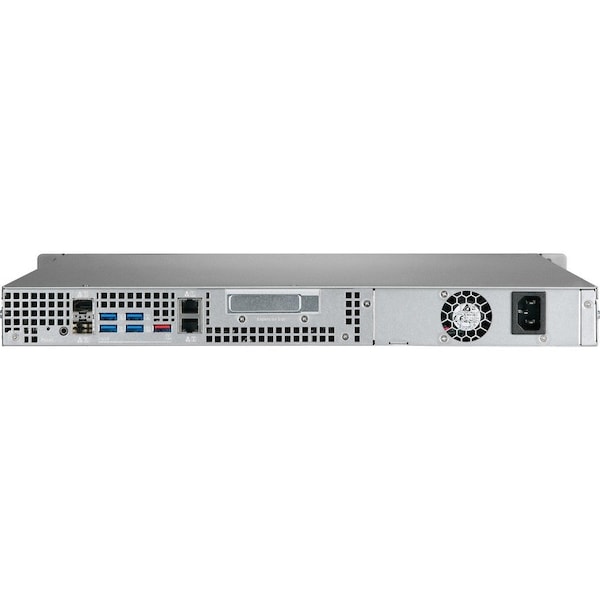

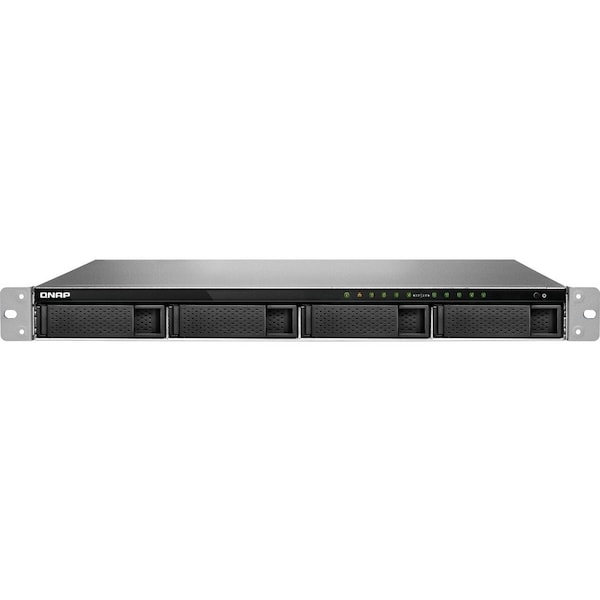

1U 9-Bay Rackmount NAS, AM
| Item | SAN/NAS Storage System |
|---|---|
| Width | 19 in |
| Depth | 19.9 in |
| Height | 1.7 in |
| Number of 2.5"/3.5" Bays | 4 |
| Memory Technology | DDR4 SDRAM |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 300 W |
| Standard Memory | 8 GB |
| Number of 2.5" Bays | 5 |
| Number of Total Expansion Bays | 9 |
| Package Contents | TS-977XU-RP-3600-8G SAN/NAS Storage System, (2) Ethernet Cables, (2) Power Cords, 1(6) Flat Head Screws (for 3.5" HDD), 3(6) Flat Head Screws (for 2.5" HDD), Quick Installation Guide (QIG) |
| Processor Type | Ryzen 5 |
| Controller Type | Serial ATA, 600 |
| Rack Height | 1 U |
| Number of Power Supplies Installed | 2 |
| Number of Hard Drives Supported | 9 |
| Processor Model | 3600 |
| Total Number of USB Ports | 5 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD |
| Processor Core | Hexa-core (6 Core) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Operating System | QTS 4.3.4 |
| Flash Memory Capacity | 5 GB |
| Number of Solid State Drive Supported | 9 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Total Number of Expansion Slots | 3 |
| Processor Speed | 3.6 GHz |
| Number of Network (RJ-45) Ports | 2 |
| Redundant Power Supply | Yes |
| Expansion Slot Type | PCI, SFP+ Express 3.0 x16 |
| Processor Manufacturer | AMD |
| Number of Solid State Drive Installed | 0 |
| Number of Hard Drives Installed | 0 |
| Mounting | Rack |
| Series | TS-x77XU |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
