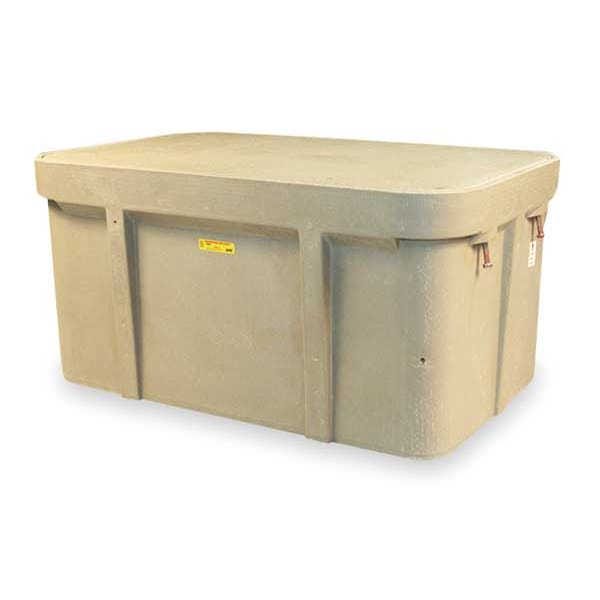

Underground Enclosure Assembly, Blank Cover, 24 in H, 49-5/8 in L, 32-1/8 in W, 15,000 lb
| Item | Underground Enclosure Assembly |
|---|---|
| Cover Logo | Blank |
| Overall Height | 24 in |
| Overall Length | 49-5/8 in |
| Overall Width | 32-1/8 in |
| Load Capacity - Maximum | 15,000 lb |
| Bottom Style | Open |
| Assembly Style | PG |
| Usable Interior Height | 21 in |
| Usable Interior Width | 28-1/8 in |
| Usable Interior Length | 45-5/8 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 4 UNC |
| Cover Pull Slot Size | 1/2 in x 4 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Nominal Dimension | 21"H, 45-5/8"L x 28-1/8"W |
| Load Rating - Underground Enclosure | 15,000 lb |
| Nominal Length (In.) | 45-5/8 |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 15 |
| Includes | Cover |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Overall Dimension | 49-5/8"L x 32-1/8"W x 24"H |
| Nominal Width (In.) | 28-1/8 |
| Bottom Style - Underground Enclosure | Open |
| Style - Underground Enclosure | PG |
| Nominal Height (In.) | 21 |
| Cover Pull Slot Size (In.) | 1/2 x 4 |
| Package Quantity | 1 |
