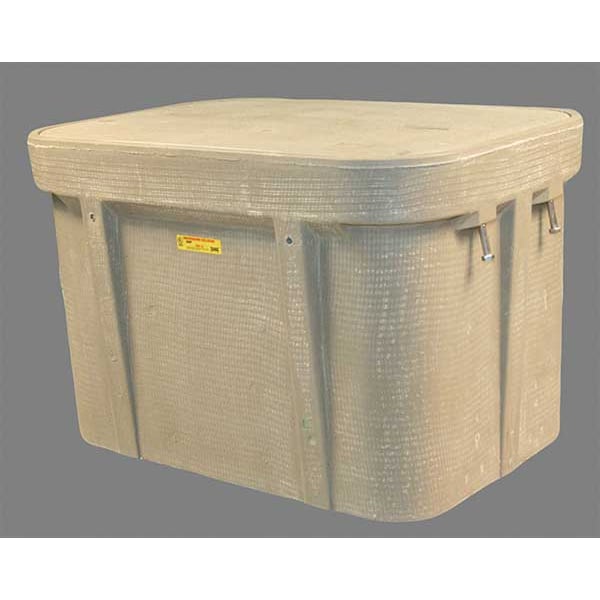

Underground Enclosure Assembly, Communications Cover, 24 in H, 37-5/8 in L, 26 in W, 15,000 lb
| Item | Underground Enclosure Assembly |
|---|---|
| Cover Logo | Communications |
| Overall Height | 24 in |
| Overall Length | 37-5/8 in |
| Overall Width | 26 in |
| Load Capacity - Maximum | 15,000 lb |
| Bottom Style | Open |
| Assembly Style | PG |
| Usable Interior Height | 21 in |
| Usable Interior Width | 22-1/4 in |
| Usable Interior Length | 33-7/8 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 4 UNC |
| Cover Pull Slot Size | 1/2 in x 4 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Nominal Dimension | 33-7/8"L x 22-1/4"W, 21"H |
| Load Rating - Underground Enclosure | 15,000 lb |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Bottom Style - Underground Enclosure | Open |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 15 |
| Cover Pull Slot Size (In.) | 1/2 x 4 |
| Style - Underground Enclosure | PG |
| Nominal Length (In.) | 33-7/8 |
| Nominal Width (In.) | 22-1/4 |
| Overall Dimension | 37-5/8"L x 26"W x 24"H |
| Nominal Height (In.) | 21 |
| Includes | Cover |
| Package Quantity | 1 |
