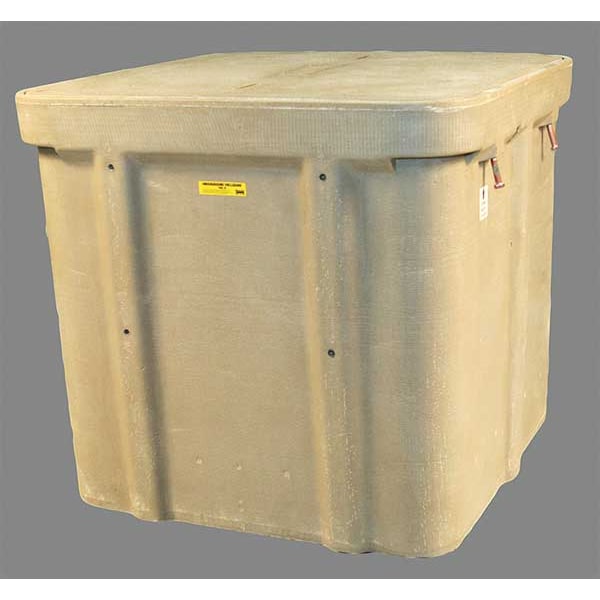

Underground Enclosure Assembly, Communications Cover, 36 in H, 40 in L, 40 in W, 8,000 lb
| Item | Underground Enclosure Assembly |
|---|---|
| Cover Logo | Communications |
| Overall Height | 36 in |
| Overall Length | 40 in |
| Overall Width | 40 in |
| Load Capacity - Maximum | 8,000 lb |
| Bottom Style | Open |
| Assembly Style | PG |
| Usable Interior Height | 33 in |
| Usable Interior Width | 36 in |
| Usable Interior Length | 36 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 4 UNC |
| Cover Pull Slot Size | 1/2 in x 4 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Style - Underground Enclosure | PG |
| Bottom Style - Underground Enclosure | Open |
| Includes | Cover |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Cover Pull Slot Size (In.) | 1/2 x 4 |
| Nominal Dimension | 36"L x 36"W x 33"H |
| Load Rating - Underground Enclosure | 8,000 lb |
| Nominal Length (In.) | 36 |
| Nominal Width (In.) | 36 |
| Nominal Height (In.) | 33 |
| Overall Dimension | 40"L x 40"W, x 36"H |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 8 |
| Package Quantity | 1 |
