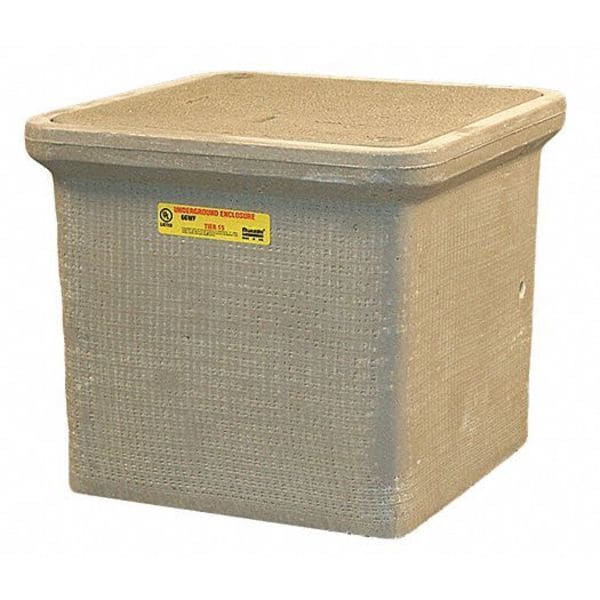

Underground Enclosure Assembly, Electric Cover, 12 in H, 14-3/4 in L, 14-3/4 in W, 15,000 lb
| Item | Underground Enclosure Assembly |
|---|---|
| Cover Logo | Electric |
| Overall Height | 12 in |
| Overall Length | 14-3/4 in |
| Overall Width | 14-3/4 in |
| Usable Interior Height | 12 in |
| Usable Interior Width | 12 in |
| Usable Interior Length | 12 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 1-1/2 |
| Cover Pull Slot Size | 1/2 in x 2 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Nominal Height (In.) | 12 |
| Nominal Length (In.) | 12 |
| Load Rating - Underground Enclosure | 15,000 lb |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 15 |
| Nominal Width (In.) | 12 |
| Cover Pull Slot Size (In.) | 1/2 x 2 |
| Bottom Style - Underground Enclosure | Open |
| Nominal Dimension | 12"L x 12"W, x 12"H |
| Includes | Cover |
| Overall Dimension | 14-3/4"L x 14-3/4"W x 12"H |
| Style - Underground Enclosure | PC |
| Assembly Style | PC |
| Bottom Style | Open |
| Load Capacity - Maximum | 15,000 lb |
| Package Quantity | 1 |
