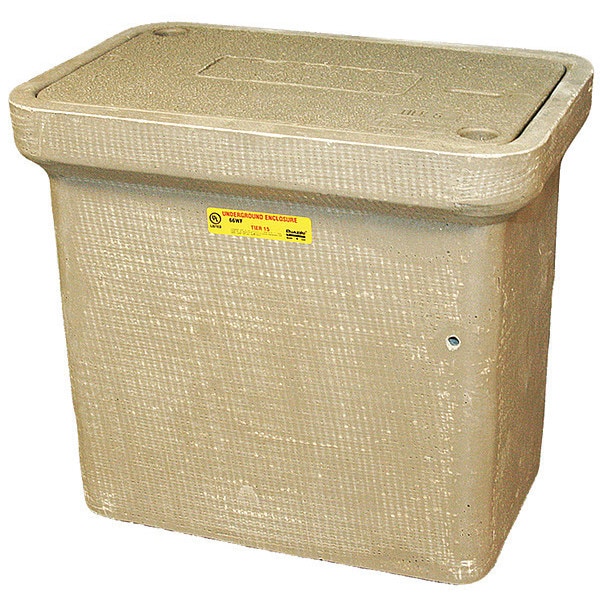

Underground Enclosure Assembly, Electric Cover, 18 in H, 20-1/4 in L, 13-3/8 in W, 8,000 lb

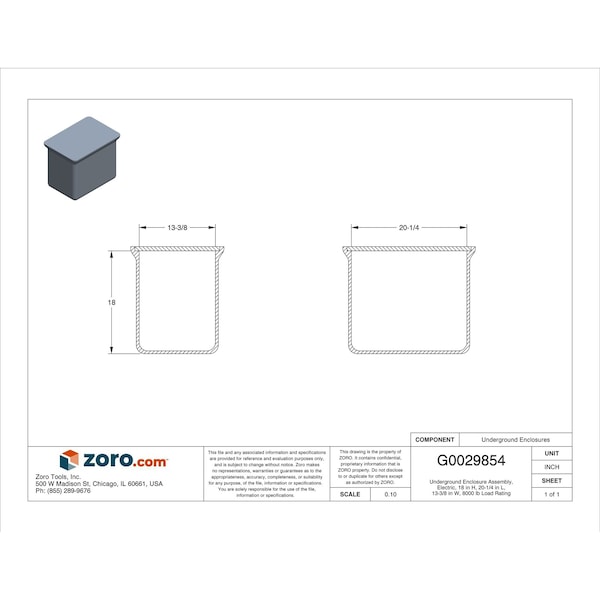

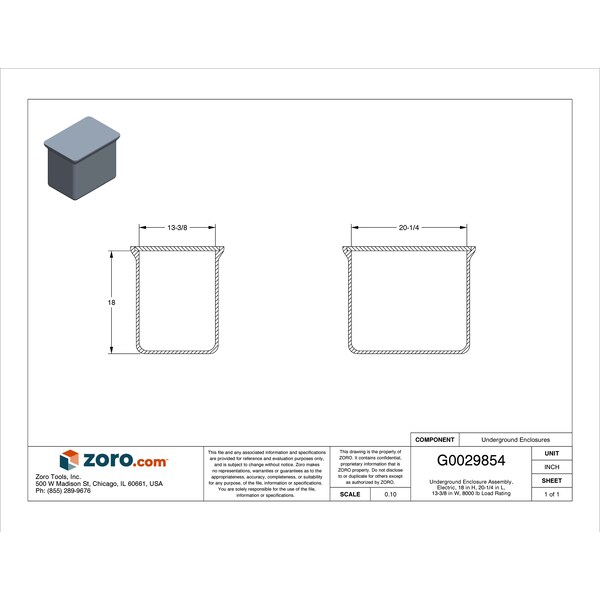

| CAD Available | Yes |
|---|---|
| Item | Underground Enclosure Assembly |
| Cover Logo | Electric |
| Overall Height | 18 in |
| Overall Length | 20-1/4 in |
| Overall Width | 13-3/8 in |
| Load Capacity - Maximum | 8,000 lb |
| Bottom Style | Open |
| Assembly Style | PG |
| Usable Interior Height | 16-1/4 in |
| Usable Interior Width | 10-1/8 in |
| Usable Interior Length | 17 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 2-1/4 UNC |
| Cover Pull Slot Size | 1/2 in x 2-1/2 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Style - Underground Enclosure | PG |
| Material of Construction | Monolithic Polymer Concrete |
| Nominal Height (In.) | 16-1/4 |
| Nominal Dimension | 17"L x 10-1/8"W x 16-1/4"H |
| Overall Dimension | 20-1/4"L x 13-3/8"W x 18"H |
| Nominal Width (In.) | 10-1/8 |
| Nominal Length (In.) | 17 |
| Includes | Cover |
| Bottom Style - Underground Enclosure | Open |
| Cover Pull Slot Size (In.) | 1/2 x 2-1/2 |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 8 |
| Load Rating - Underground Enclosure | 8,000 lb |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Package Quantity | 1 |
