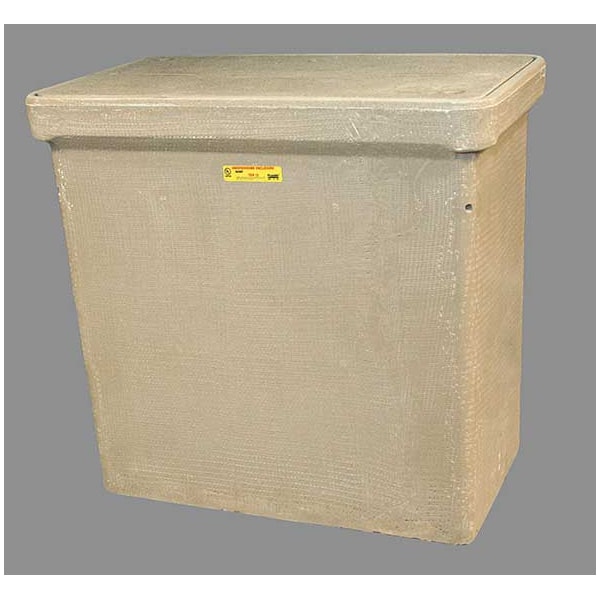

Underground Enclosure Assembly, Electric Cover, 30 in H, 32-1/4 in L, 19-1/4 in W, 8,000 lb
| Item | Underground Enclosure Assembly |
|---|---|
| Cover Logo | Electric |
| Overall Height | 30 in |
| Overall Length | 32-1/4 in |
| Overall Width | 19-1/4 in |
| Usable Interior Height | 28 in |
| Usable Interior Width | 15-1/2 in |
| Usable Interior Length | 28-1/2 in |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 2-3/4 UNC |
| Cover Pull Slot Size | 1/2 in x 4 in |
| Material | Monolithic Polymer Concrete |
| Color | Gray |
| Load Rating - Underground Enclosure | 8,000 lb |
| Overall Dimension | x 30"H, 32-1/4"L x 19-1/4"W |
| Nominal Height (In.) | 28 |
| Includes | Cover |
| Description/Special Features | Non-Deliberate Traffic Only, Stackable |
| Standards | UL Listed to ANSI/SCTE 77 2007 Tier 8 |
| Bottom Style - Underground Enclosure | Open |
| Nominal Dimension | 28-1/2"L x 15-1/2"W, x 28"H |
| Style - Underground Enclosure | PG |
| Nominal Length (In.) | 28-1/2 |
| Nominal Width (In.) | 15-1/2 |
| Cover Pull Slot Size (In.) | 1/2 x 4 |
| Bottom Style | Open |
| Assembly Style | PG |
| Load Capacity - Maximum | 8,000 lb |
| Package Quantity | 1 |
