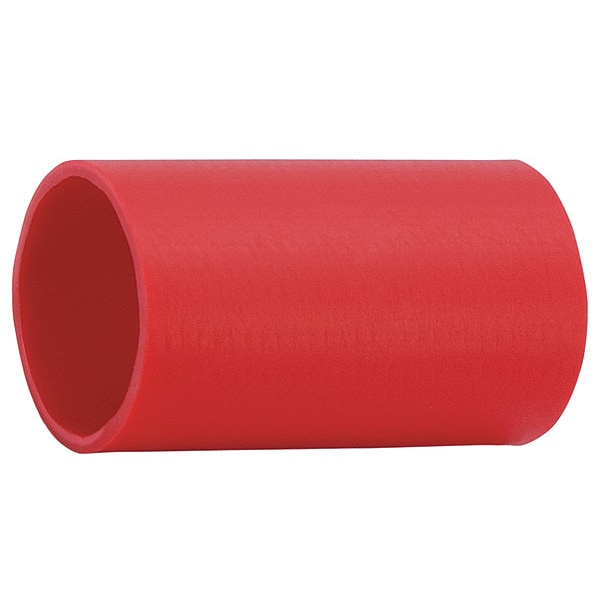

Adhesive Lined Heat Shrink Tube, Dual Wall, 3:1 I.D. Shrink Ratio, 0.75 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 3:1 |
| Wall Type | Dual Wall |
| Shrink Tubing I.D. After Shrinking | 1/4 in |
| Material | Polyolefin |
| Color | Red |
| Length | 6 in |
| Use with Wire Size | 4 to 2/0 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 257°F |
| Flame Retardant | No |
| Features | Double Meltable Sealant |
| Standards | UL Listed |
| Shrink Tubing I.D. Before Shrinking | 3/4 in |
| Max. Temp. Rating | 230 deg F |
| Adhesive Lined | Yes |
| Shrink Tubing Properties | Abrasion Resistant |
| Wall Thickness After Shrinking | 0.13 in |
| Package Style | Individual Pieces |
| Tubing Wall Type | Heavy Wall |
| Dielectric Strength | 600 V |
| Min. Temp. Rating | -67 deg F |
| I.D. After Shrinking | 1/4 in |
| I.D. Before Shrinking | 3/4 in |
| Package Quantity | 5 |
