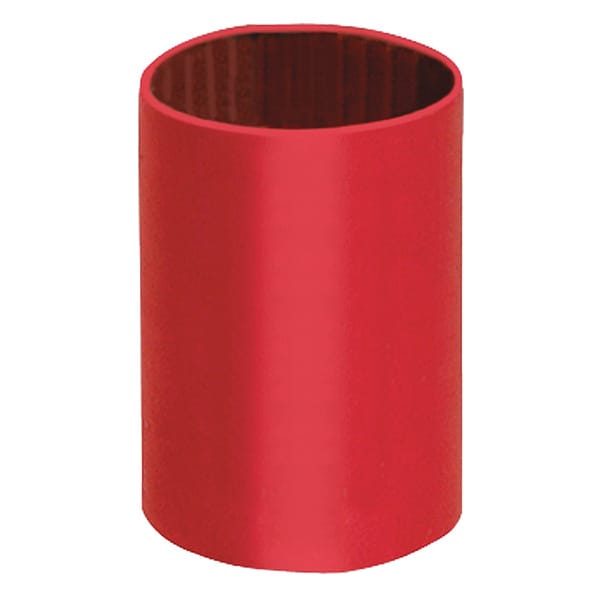

Flex Tube, 3/4" Heat Shrink, Red 1.5", PK50
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 3:1 |
| Material | Polyolefin with Adhesive |
| Color | Red |
| Length | 1-1/2 in |
| Temp. Range | -67 to 230 deg F |
| Min. Shrink Temp. | 257 deg F |
| Flame Retardant | Yes |
| I.D. Before Shrinking | 3/4 in |
| I.D. After Shrinking | 1/4 in |
| Features | Permits Visual Inspection |
| Standards | UL 224 |
| Adhesive Lined | Yes |
| Dielectric Strength | 600 V |
| Use With Wire Size | 4 AWG to 2/0 AWG |
| Wall Thickness After Shrinking | 0.06 in |
| Package Style | Individual Pieces |
| Shrink Tubing Properties | Abrasion Resistant |
| Max. Temp. Rating | 230 deg F |
| Min. Temp. Rating | -67 deg F |
| Tubing Wall Type | Medium Wall |
| Length (Straight Wireway) | 1-1/2 in |
| Package Quantity | 50 |
