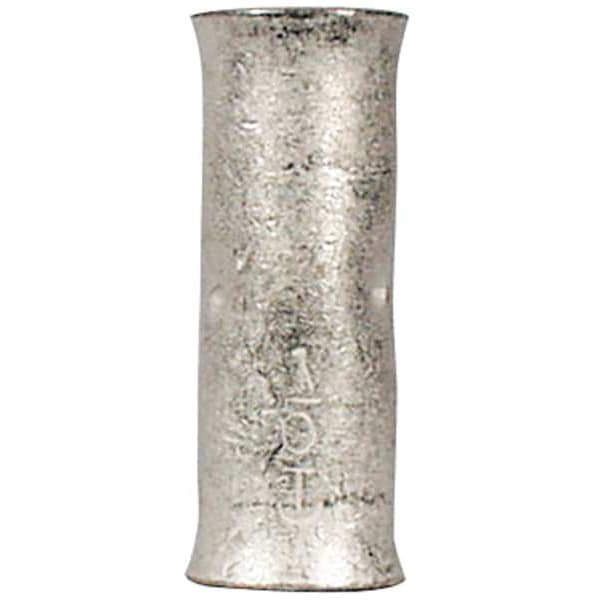

Short-Barrel Splice, 1.20 in. L, Gray, PK10
| Item | Short-Barrel Splice |
|---|---|
| Material | Tin Plated Copper |
| Length | 1.2 in |
| Color Code | Silver |
| Overall Length | 1.2 in |
| Wire Gauge | 4 AWG |
| Outside Dia. | 0.37 in |
| Standards | UL Listed |
| Die Code | 1 |
| Length (Straight Wireway) | 1.2 in |
| For Wire Type | Stranded |
| Maximum Wire Size | 4 AWG |
| Minimum Wire Size | Not Applicable |
| For Conductor Material | Copper |
| Barrel Finish | Tin Plated |
| Contact Finish | Tin |
| Seam Style | Seamless |
| Barrel Size | Short |
| Barrel Outside Diameter | 0.37 in |
| Maximum Conductors | 2 |
| Maximum Operating Temperature | Not Applicable |
| Maximum Voltage | 600 V |
| RoHS Compliant | Yes |
| Termination Style | Crimp |
| Number of Crimps | 2 |
| Contact Material | Copper |
| Package Quantity | 10 |
