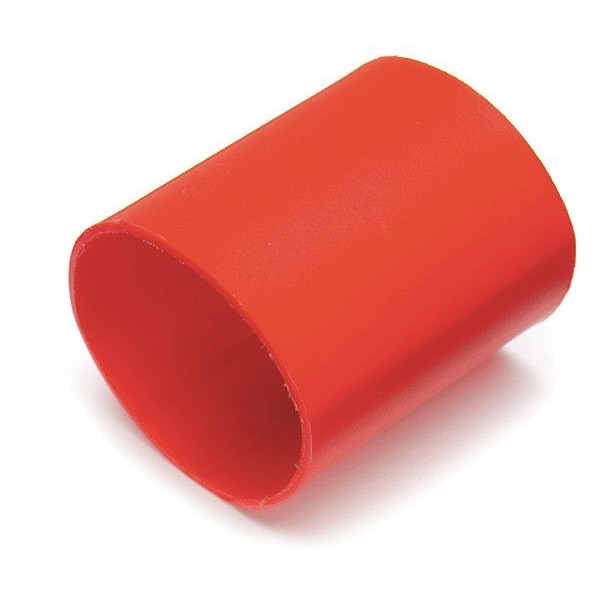

Shrink Tubing, 0.75in ID, Red, 1-1/2in, PK10
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 3:1 |
| Shrink Tubing Wall Type | Heavy Wall |
| Shrink Tubing I.D. Before Shrinking | 3/4 in |
| Material | Cross-Linked Polyolefin with Adhesive |
| Color | Red |
| Length | 1-1/2 in |
| Temp. Range | -67 to 230 deg F |
| Min. Shrink Temp. | 257 deg F |
| Shrink Tubing Type | Heat Shrink Tubing |
| Shrink Tubing Material | Cross-Linked Polyolefin |
| Standards | UL 486D |
| Shrink Tubing Usable Temp. Range | -67 to 230 deg F |
| Max. Voltage | 600 V |
| Features | Withstands Severe Mechanical Requirements |
| Flame Retardant | No |
| I.D. After Shrinking | 1/4 in |
| Use Shrink Tubing With Wire Size | 4 to 2/0 AWG |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing Wall Thickness After Shrinking | 1/8 in |
| Shrink Tubing Length | 1-1/2 in |
| I.D. Before Shrinking | 3/4 in |
| Use With Wire Size | 4 AWG to 2/0 AWG |
| Tubing Wall Type | Heavy Wall |
| Adhesive Lined | Yes |
| Max. Temp. Rating | 230 deg F |
| Min. Temp. Rating | -67 deg F |
| Dielectric Strength | 600 V |
| Wall Thickness After Shrinking | 0.13 in |
| Shrink Tubing Properties | Abrasion Resistant |
| Package Style | Individual Pieces |
| Length (Straight Wireway) | 1-1/2 in |
| Package Quantity | 10 |
