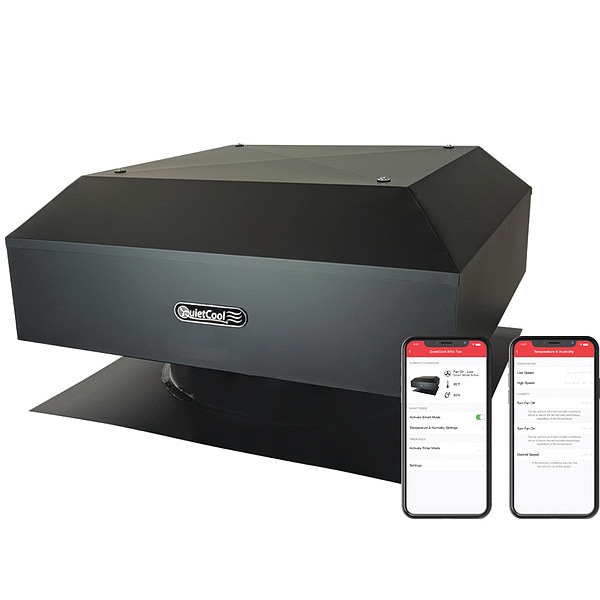

QUIETCOOL Steel 14"H 24"W Exhst Fan
| Control Method - Roof Ventilators | Automatic |
|---|---|
| Max. Attic Area (Sq.-Ft.) | 3,000 sq ft |
| Item - Roof Ventilators | Roof Ventilator |
| Hz | 60 |
| Amps | 2.3/1.1/0.3 |
| Watts | 26, 81.5, 170 |
| CFM @ 0.000-In. SP | 2,116 |
| CFM @ 0.030-In. SP | 1,015 |
| Dome Dia. (In.) | 16-1/2 |
| Dome Material | Black Powder Coated Steel |
| Includes | Accessory Bag, Smart Control Hub |
| Mounting Location - Roof Ventilators | Roof |
| Item | Attic Exhaust Fan |
| Power Method - Roof Ventilators | 120V |
| Fire Safety Shut-Off | Yes |
| Includes Thermostat | Yes |
| Housing Material | Steel |
| Power Source | Electric Motor |
| Control Type | Smart Control Hub |
| Motor Type | Electronically Commutated |
| Rough Opening Width | Not Applicable |
| Dome Length | 14 in |
| Airflow @ Static Pressure | 1,015 cfm @ 0.03 in |
| Mount Type | Roof Curb |
| Maximum Attic Area | 3,000 sq ft |
| High-Efficiency Motor | Yes |
| Overall Diameter | 16-1/2 in |
| For High-Static Pressure Applications | Yes |
| Wattage | 26 W, 81.5 W, 170 W |
| Cutout Size | 16.5 in Dia. |
| Dome Shape | Square |
| Dome Width | 24 in |
| Includes Humidistat | No |
| Current | 2.3/1.1/0.3 A |
| Exhaust Airflow @ 0.000 in SP | 2,116 cfm |
| Rough Opening Diameter | 16-1/2 in |
| Blade Material | Steel |
| Overall Length | 24 in |
| Overall Width | 24 in |
| Dome Diameter | Not Applicable |
| Rough Opening Shape | Round |
| Overall Height | 14 in |
| Base Material | Steel |
| Nameplate Voltage | 120V AC |
| Minimum Airflow | 1,015 cfm |
| Airflow @ 0.000 in SP | 2,116 cfm |
| Motor Horsepower | Not Applicable |
| Maximum Airflow | 2,116 cfm |
| Includes Motor | Yes |
| Includes Shutter | No |
| Weight | 45 lb |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
