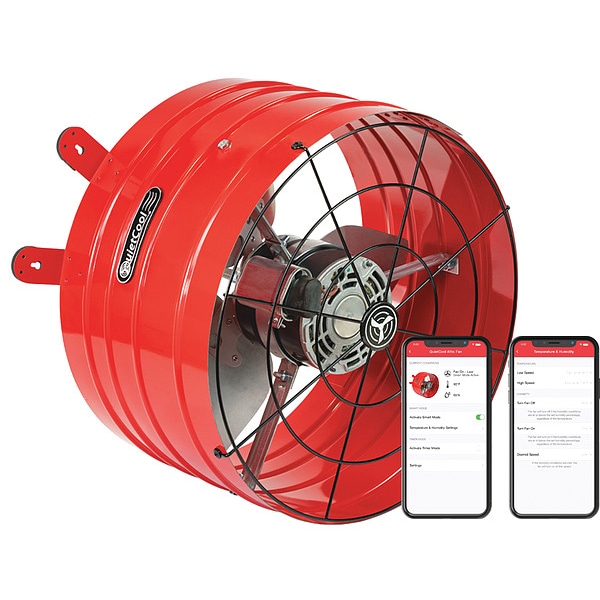

QUIETCOOL Steel 9.75"H 16.5"W Exhst Fan
| Control Method - Roof Ventilators | Automatic |
|---|---|
| Max. Attic Area (Sq.-Ft.) | 4,000 sq ft |
| Item - Roof Ventilators | Attic Ventilator |
| Hz | 60 |
| Amps | 2.1/1.4 |
| Watts | 157, 205 |
| CFM @ 0.000-In. SP | 2,860 |
| CFM @ 0.030-In. SP | 2,081 |
| Dome Dia. (In.) | 16-1/2 |
| Power Method - Roof Ventilators | 120V |
| Item | Attic Exhaust Fan |

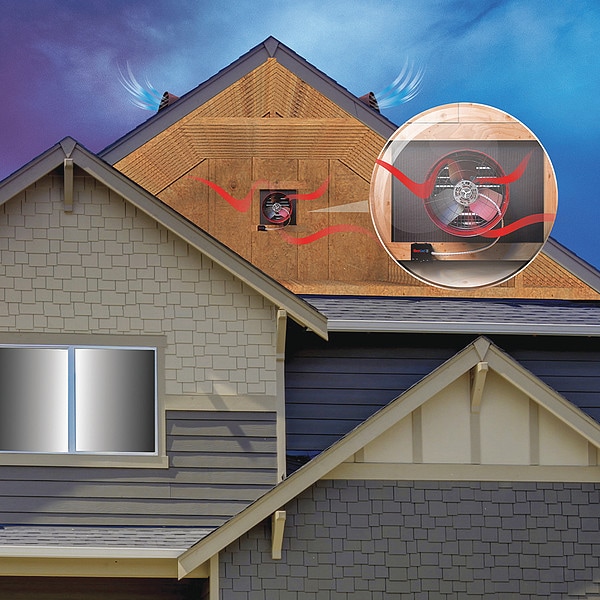

| Mounting Location - Roof Ventilators | Gable |
| Includes | Accessory Bag, Smart Control Hub, Vent Covers |
| Airflow @ 0.000 in SP | 2,860 cfm |
| Weight | 28 lb |
| Dome Length | 10 in |
| Overall Diameter | 16-1/2 in |
| Overall Height | 16-1/2 in |
| Includes Thermostat | Yes |
| Power Source | Electric Motor |
| Includes Humidistat | No |
| Rough Opening Shape | Round |
| Mount Type | Roof Curb |
| Blade Material | Steel |
| Overall Length | 16-1/2 in |
| Airflow @ Static Pressure | 2,081 cfm @ 0.03 in |
| Control Type | Smart Control Hub |
| For High-Static Pressure Applications | Yes |
| High-Efficiency Motor | No |
| Maximum Airflow | 2,860 cfm |
| Motor Horsepower | Not Applicable |
| Minimum Airflow | 2,081 cfm |
| Dome Width | Not Applicable |
| Includes Motor | Yes |
| Dome Shape | Not Applicable |
| Rough Opening Width | Not Applicable |
| Dome Diameter | Not Applicable |
| Motor Type | Permanent Split Capacitor |
| Includes Shutter | No |
| Maximum Attic Area | 4,000 sq ft |
| Nameplate Voltage | 120V AC |
| Wattage | 157 W, 205 W |
| Frequency | 60 Hz |
| Housing Material | Steel |
| Fire Safety Shut-Off | Yes |
| Exhaust Airflow @ 0.000 in SP | 2,860 cfm |
| Current | 2.1/1.43 A |
| Rough Opening Diameter | 16-1/2 in |
| Base Material | Steel |
| Overall Width | 9-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
