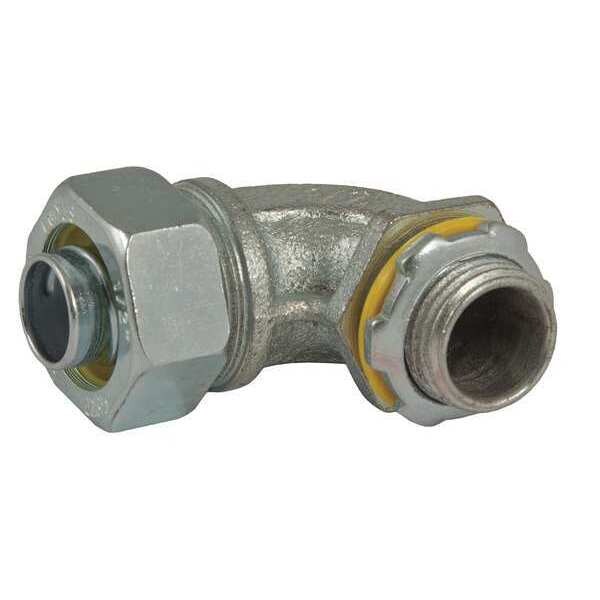

Conduit Fitting Connector, 1-1/2 in, Liquid-Tight, Steel, Zinc Plated, Gray
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Connector |
| Trade Size | 1-1/2 in |
| Connection Type | Liquid-Tight |
| Material | Steel |
| Finish | Zinc Plated |
| Color | Gray |
| Overall Length | 2-13/16 in |
| Box Connection | 1-1/2 in MNPT |
| Use With - Conduit | Flexible Liquid Tight Metallic Conduit, Flexible Liquid Tight Non-Metallic Type B Conduit |
| Insulated | Non-Insulated |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 and 2, Class III, Division 1 and 2 |
| External Grounding Lug | No |
| Mesh Material | No Strain Relief Mesh |
| Standards | CSA C22.2 No. 18 Certified, Standard 514B, UL Listed E195969 |
| Mesh Length | No Strain Relief Mesh |
| Connector Type | 90 Degrees |
| Style - Connector | 90 Degrees |
| Length | 2.813 in |
| Hazardous Location | Yes |
| Application | Commercial Fittings |
| Height (In.) | 5.063 |
| Features | Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts; RACO liquidtight connectors may be easily disassembled and reused after years of service; Sealing washer (included) provides a liquidtight seal when terminating the connector in a threadless opening; Heavy duty locknut included with every RACO liquidtight connector assures continuity of ground; All steel/iron components are zinc electroplated for added corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; 3/8 in. to 1 in. Steel, 1-1/4 in. to 4 in. Malleable Iron bodies and nuts; Additional sizes available |
| Width | 2.813 in |
| Overall Width | 2-13/16 in |
| Overall Height | 5-1/16 in |
| Elbow Angle | 90 deg |
| Connection Orientation | 90 Degrees Elbow |
| Connector Style | 90 Degrees |
| Weight | 1.36 lb |
| Compatible Knockout Trade Size | 1-1/2 in |
| Industry Standard(s) | UL 514B |
| Dimensions | 2.813 in x 2.813 in x 5.063 in |
| Hazardous Rating(s) | Class I, Division 2Class II Division 1 & 2Class III, Division 1 & 2 |
| Certified Listed | UL ListedCSA Certified |
| Height | 5.063 in |
| Conduit Trade Size | 1 1/2 in |
| Conduit Fitting Material | Steel/Malleable Iron |
| Item - Conduit Fitting | Liquid Tight Conduit Fitting |
| Package Quantity | 1 |
