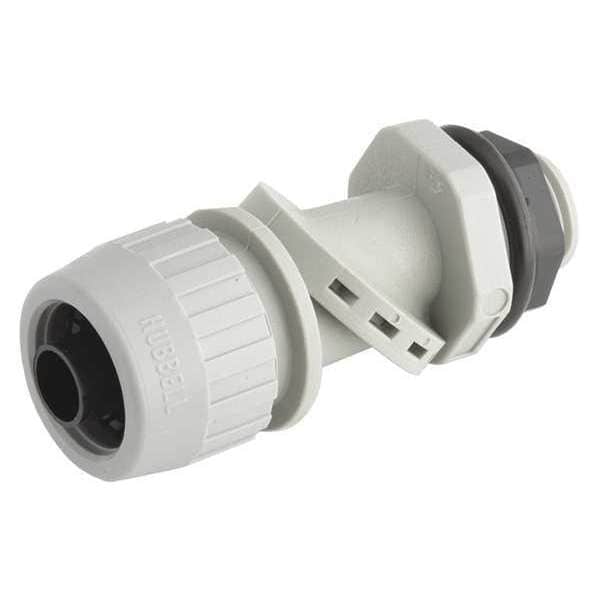

Conduit Fitting Connector, 1 in, Liquid-Tight, Nylon, Electro Zinc Plated, Gray
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Connector |
| Trade Size | 1 in |
| Connection Type | Liquid-Tight |
| Material | Nylon |
| Finish | Electro Zinc Plated |
| Color | Gray |
| Overall Length | 4 in |
| Connector Type | Multi-Angle |
| Insulated | No |
| Style - Connector | Adjustable from 0 Degrees to 90 Degrees |
| Hazardous Location Rating | Not Rated |
| External Grounding Lug | No |
| Box Connection | 1 in MNPT |
| Use With - Conduit | Flexible Liquid Tight Non-Metallic Type B Conduit |
| Standards | CSA C22.2 No. 18, UL 514B |
| Mesh Length | No Strain Relief Mesh |
| Mesh Material | No Strain Relief Mesh |
| Length | 4 in |
| Application | For use in dry or wet locations when the conduit and fittings are not subject to physical damageUse Type B conduit and fittings whenever flexibility is required for installation, operation, or maintenance |
| Width | 1.8 in |
| Features | All gray nonmetallic construction provides superior corrosion resistance; Each connector is supplied with a Neoprene O-ring and nylon gasket; SWIVEL-LOK, multi-position connector (trade sizes 3/8 in. to 1 in.) twists from 0° to 90°, easing installation in difficult locations and eliminating need to stock other angle connectors; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; Additional sizes available |
| Height (In.) | 1.8 |
| Weight | 0.12 lb |
| Compatible Knockout Trade Size | 1 in |
| Connection Orientation | 0 Degrees to 90 Degrees |
| Overall Width | 1-13/16 in |
| Elbow Angle | 90 deg |
| Connector Style | Adjustable from 0 Degrees to 90 Degrees |
| Overall Height | 1-13/16 in |
| Height | 1.8 in |
| Dimensions | 4 in x 1.8 in x 1.8 in |
| Conduit Type | Liquidtight |
| Certified Listed | UL ListedCSA Certified |
| Industry Standard(s) | UL 514B |
| Environmental Conditions | Wet Location |
| Fitting Type | Connectors |
| Nema Rating | NEMA 4X, 12 and 13 |
| Conduit Trade Size | 1 in |
| Conduit Fitting Material | Nylon |
| Item - Conduit Fitting | Liquid Tight Conduit Fitting |
| Package Quantity | 1 |
