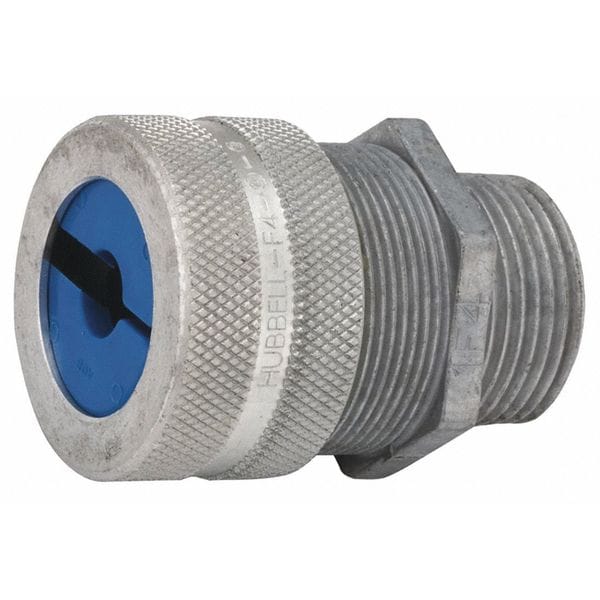

Conduit Fitting Connector, 3/4 in, Liquid-Tight, Aluminum, Zinc Plated, White
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Connector |
| Trade Size | 3/4 in |
| Connection Type | Liquid-Tight |
| Material | Aluminum |
| Finish | Zinc Plated |
| Color | White |
| Overall Length | 2.05 in |
| Hazardous Location Rating | Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2 |
| Length | 2.05 in |
| Application | Commercial Fittings |
| Hazardous Location | Yes |
| Connector Type | Straight |
| Standards | UL Listed,CSA Certified, UL 514B |
| Features | Aluminum construction provides a corrosion resistant installation; Innovative GOTHCA® ring incorporates a split hinge design to prevent friction and to provide strain relief; Neoprene grommet; Knurled compression nut allows the fittings to be hand tightened to UL requirements; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available |
| Height (In.) | 1.13 |
| Width | 1.13 in |
| Cord Dia. Range | 1/4 to 3/8 in |
| Conduit Type | Liquidtight |
| Industry Standard(s) | UL 514B |
| Form Size | 2 in |
| Dimensions | 2.05 in x 1.13 in x 1.13 in |
| Hazardous Rating(s) | Class I, Division 2Class II Division 1 & 2Class III, Division 1 & 2 |
| Fitting Type | Connectors |
| Certified Listed | UL ListedCSA Certified |
| Color Code | White |
| Environmental Conditions | Wet Location |
| Height | 1.13 in |
| Cable Range | 1/4 to 3/8 in |
| Package Quantity | 1 |
