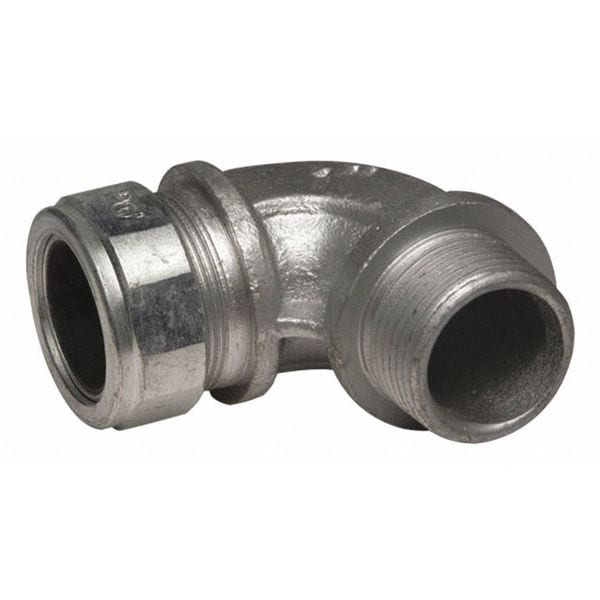

Conduit Fitting Cordgrip, 1 in, Malleable Iron, Zinc Plated, Black
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Cordgrip |
| Trade Size | 1 in |
| Material | Malleable Iron |
| Finish | Zinc Plated |
| Color | Black |
| Overall Length | 3.88 in |
| Application | For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cableRACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations |
| Standards | cULus Listed |
| Length | 3.88 in |
| Hazardous Location Rating | Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2 |
| Hazardous Location | Yes |
| Strain Relief Type | Liquidtight Strain Relief |
| Features | Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available |
| Width | 1-3/4 in |
| Cord Dia. Range | 0.95 to 1.05 in |
| Height (In.) | 1-3/4 |
| Dimensions | 3.88 in x 1-3/4 in x 1-3/4 in |
| Height | 1-3/4 in |
| Certified Listed | cULus Listed |
| Nema Rating | NEMA 4 |
| Cable Range | 0.95 to 1.05 in |
| Package Quantity | 1 |
