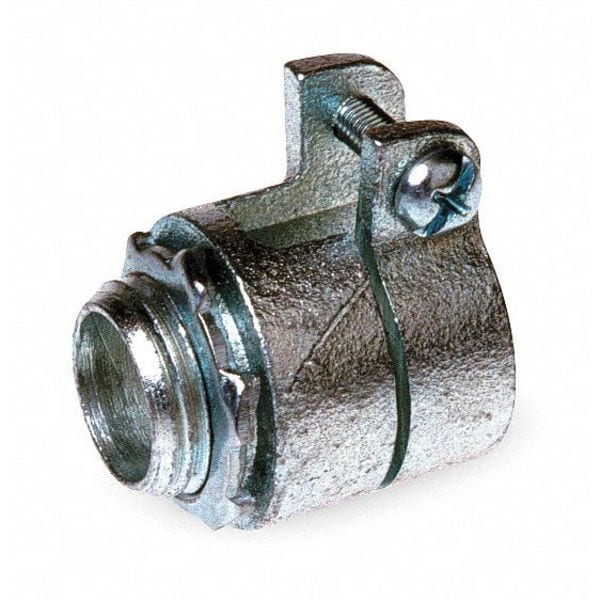

Conduit Fitting Grounding Connector, 1 in, Push-On, Iron, Electro Zinc Plated, Gray
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Grounding Connector |
| Trade Size | 1 in |
| Connection Type | Push-On |
| Material | Iron |
| Finish | Electro Zinc Plated |
| Color | Gray |
| Overall Length | 1-11/16 in |
| Standards | cULus Listed |
| Insulated | No |
| Box Connection | Threaded Electrical Box Connection |
| Cable Opening Min. | 1.384 in |
| Cable Opening Max. | 1.408 in |
| Cable Clamping Method | Squeeze Clamp |
| Style - Connector | Straight |
| Use With - Metallic Building Cable | AC, Flexible Conduit, MC |
| Knockout Size | 1 in |
| Description/Special Features | Squeeze Clamp |
| NPT Size | 1 in |
| Application | Commercial Fittings |
| Length | 1.688 in |
| Connector Type | Straight |
| Height (In.) | 2.391 |
| Thread Size | 1"-11 1/2 |
| Features | All malleable construction ensures mechanical protection for the raceway; Electro zinc plated for added corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; Additional sizes available |
| Width | 1.72 in |
| Overall Width | 1-23/32 in |
| Connector Style | Straight |
| Thread Type | NPT |
| Compatible Knockout Trade Size | 1 in |
| For Maximum Cable OD | 1.41 in |
| Resistance Properties | Corrosion Resistant |
| Connection Orientation | Straight |
| Overall Height | 2-13/32 in |
| Weight | 0.31 lb |
| For Minimum Cable OD | 1.38 in |
| Dimensions | 1.688 in x 1.72 in x 2.391 in |
| Certified Listed | cULus Listed |
| Fitting Type | Connectors |
| Conduit Type | Flexible Metal Conduit |
| Height | 2.391 in |
| Item - Building Cable Connector | Metallic Sheath Cable Connector |
| Fitting Sub-Category | Straight Connectors |
| Package Quantity | 1 |
