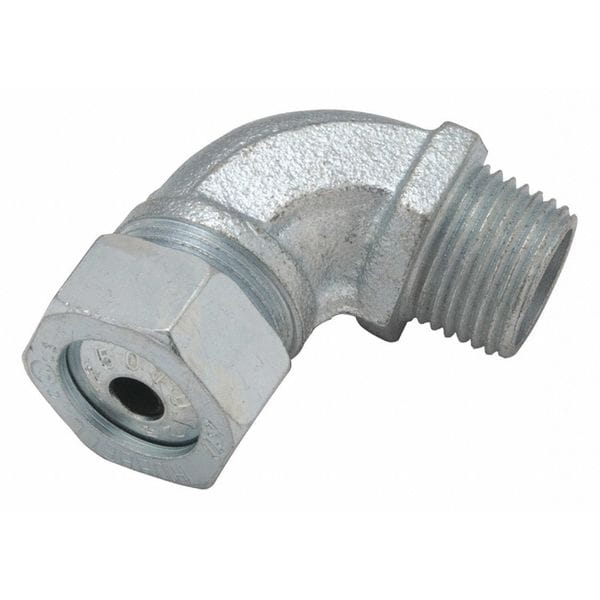

Conduit Fitting Grounding Connector, 3/4 in, Liquid-Tight, Malleable Iron, Electro Zinc Plated
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | Grounding Connector |
| Trade Size | 3/4 in |
| Connection Type | Liquid-Tight |
| Material | Malleable Iron |
| Finish | Electro Zinc Plated |
| Overall Length | 2-3/8 in |
| Hazardous Location Rating | Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2 |
| Application | Commercial Fittings |
| Length | 2-3/8 in |
| Standards | cULus Listed |
| Connector Type | 90 Degrees |
| Hazardous Location | Yes |
| Cord Dia. Range | 1/2 to 0.6 in |
| Width | 1.204 in |
| Features | All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for indentification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; 1/2 in. to 3/4 in. Malleable Iron bodies; 1/2 in. to 3/4 in. Steel nuts; Additional sizes available |
| Height (In.) | 2.227 |
| Conduit Type | Liquidtight |
| Fitting Type | Connectors |
| Hazardous Rating(s) | Class I, Division 2Class II Division 1 & 2Class III, Division 1 & 2 |
| Cable Range | 1/2 to 0.6 in |
| Height | 2.227 in |
| Certified Listed | cULus Listed |
| Form Size | 3 in |
| Environmental Conditions | Wet Location |
| Dimensions | 2-3/8 in x 1.204 in x 2.227 in |
| Package Quantity | 1 |
