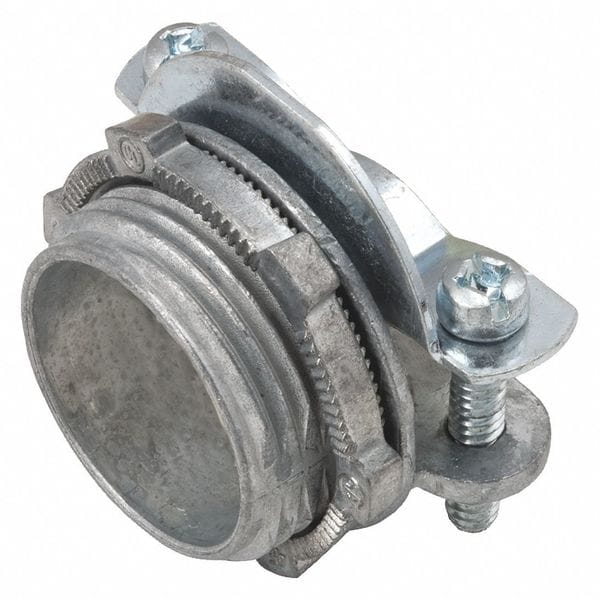

Conduit Fitting NM Sheathed Cable Connector, 3/4 in, Threaded, Die Cast Zinc, PVC Coated, Silver
| Item | Conduit Fitting |
|---|---|
| Conduit Fitting Type | NM Sheathed Cable Connector |
| Trade Size | 3/4 in |
| Connection Type | Threaded |
| Material | Die Cast Zinc |
| Finish | PVC Coated |
| Color | Silver |
| Overall Length | 15/16 in |
| Knockout Size | 3/4 in |
| Box Connection | 3/4 in MNPT |
| Style - Connector | Straight |
| Standards | E195971, UL 514B, UL Listed File E195972 |
| Insulated | No |
| Use With - Nonmetallic Building Cable | (1) 10/3, (1) 6/3, Round Cable: (1) 6/2 |
| Cable Clamping Method | Clamp Style |
| Width | 1.66 in |
| Height (In.) | 1-1/8 |
| Cable Size - Anti-Short Bushing | 3 #12, 3 #10, 2 #8 |
| Connector Type | Clamp Type |
| Application | Commercial Fittings |
| Length | 0.94 in |
| Includes | Clamp |
| Thread Size | 3/4 in-1/4 |
| Features | Rugged metallic construction will last the life of the installation; Additional size available |
| Thread Type | NPSM |
| Connector Style | Straight |
| Overall Width | 1-11/16 in |
| Overall Height | 1-1/8 in |
| For Minimum Cable OD | 2.05 mm |
| For Maximum Cable OD | 3.26 mm |
| Cable Size | 3 #12, 3 #10, 2 #8 |
| Conduit Type | Service Entrance |
| Certified Listed | UL Listed |
| Fitting Type | Connectors |
| Dimensions | 0.94 in x 1.66 in x 1-1/8 in |
| Industry Standard(s) | UL 514B |
| Height | 1-1/8 in |
| Item - Building Cable Connector | Nonmetallic Sheath Cable Connector |
| Package Quantity | 1 |
