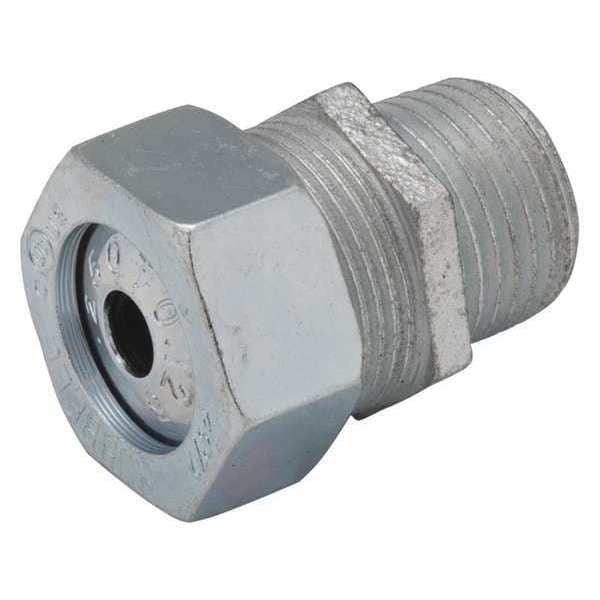

Cord Connector, 1-51/64" L, 1" Conduit
| Item | Enhanced Rating Cord Connector |
|---|---|
| Hub Size | 1 in MNPT |
| Material | Steel |
| Color | Silver |
| Length | 1-51/64 in |
| Standards | cULus |
| Box Connection | 1 in MNPT |
| Insulated | No |
| Connector Type | Straight |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Gland Color Code | Imprinted |
| Material - External Strain Relief | No External Strain Relief |
| Length - Box to End of Connector | 1-3/16 in |
| Material - Cord Connector | Steel |
| Conduit Size | 1" |
| Number of Cords | 1 |
| Style - Connector | Straight |
| Item - Cord Connector | Enhanced Rating Cord Connector |
| Body Color - Cord Connector | Silver |
| Cord Dia. Range | 0.6 to 0.7 in |
| Strain Relief Type | No External Strain Relief |
| Length - External Strain Relief | No External Strain Relief |
| Collar Material | Steel |
| Compatible Conduit Trade Size | 4 in |
| Liquid Tight | Yes |
| Grommet Color Code | Imprinted |
| Body Material | Steel |
| Body Color | Silver |
| Thread Type | NPT Thread |
| Form Size | F4 |
| Grommet Material | Neoprene |
| Thread Size | 4 in |
| For Minimum Cable OD | 0.6 in |
| For Maximum Cable OD | 0.7 in |
| Connection Orientation | Straight |
| Each - Width | 1.703 in |
| Cable Range | .600 - .700 in |
| Size | 1.797 in x 1.703 in x 1.703 in |
| Environmental Conditions | Wet Location |
| Hazardous Rating(s) | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Standard | cULus Listed |
| Dimensions | 1.797 in x 1.703 in x 1.703 in |
| Fitting Type | Connectors |
| Height | 1.703 in |
| Conduit Type | Liquidtight |
| Product Type | Commercial Fittings |
| Certified Listed | cULus Listed |
| Trade Size | 1 in |
| Width | 1.703 in |
| Features | All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for identification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; 3/8 in. to 1 in. Steel, 1-1/4 in. to 1-1/2 in. Malleable Iron bodies and nuts; Additional sizes available |
| Package Quantity | 1 |
