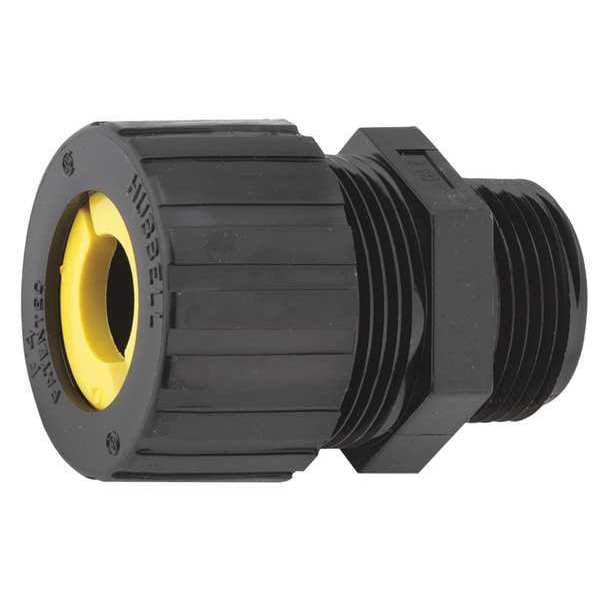

Cord Connector, 2-1/32" L, 1/2" Conduit
| Item | Liquid Tight Cord Connector |
|---|---|
| Item - Cord Connector | Liquid Tight Cord Connector |
| Style - Connector | Straight |
| Hub Size | 1/2 in MNPT |
| Conduit Size | 1/2" |
| Material | Nylon |
| Cord Dia. Range | 1/2 to 0.63 in |
| Color | Black |
| Box Connection | 1/2 in MNPT |
| For Use With | Dry or Wet Locations |
| Fitting Type | Connectors |
| Material - Cord Connector | Nylon |
| Material - External Strain Relief | No External Strain Relief |
| Gland Color Code | Brown |
| Number of Cords | 1 |
| Standards | UL 514B |
| Connector Type | Straight |
| Body Color - Cord Connector | Black |
| Length - Box to End of Connector | 1-1/2 in |
| Hazardous Location Rating | Not Rated |
| Strain Relief Type | No External Strain Relief |
| Length | 2-1/32 in |
| Length - External Strain Relief | No External Strain Relief |
| Insulated | Yes |
| Liquid Tight | Yes |
| Form Size | F1 |
| Thread Type | NPT Thread |
| Body Material | Nylon |
| Collar Material | Nylon |
| For Maximum Cable OD | 5/8 in |
| Body Color | Black |
| Thread Size | 1/2 in |
| Grommet Material | Neoprene |
| Grommet Color Code | Brown |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| For Minimum Cable OD | 1/2 in |
| Connection Orientation | Straight |
| Environmental Rating | Liquid Tight |
| Compatible Conduit Trade Size | 1/2 in |
| Certified Listed | UL Listed;CSA Certified |
| Cable Range | 1/2 to 5/8 in |
| Product Type | Commercial Fittings |
| Width | 1-1/4 in |
| Hazardous Rating(s) | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Environmental Conditions | Wet Location |
| Industry Standard(s) | UL 514B |
| Each - Width | 1-1/4 in |
| Configuration | Straight |
| Standard | UL 514B |
| Conduit Type | Liquidtight |
| Height | 1-1/4 in |
| Trade Size | 1/2 in |
| Dimensions | 2.031 in x 1-1/4 in x 1-1/4 in |
| Size | 2.031 in x 1-1/4 in x 1-1/4 in |
| Features | Nylon construction is lightweight and easy to use; Neoprene grommet; Resists most common industrial corrosives; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available |
| Package Quantity | 1 |
