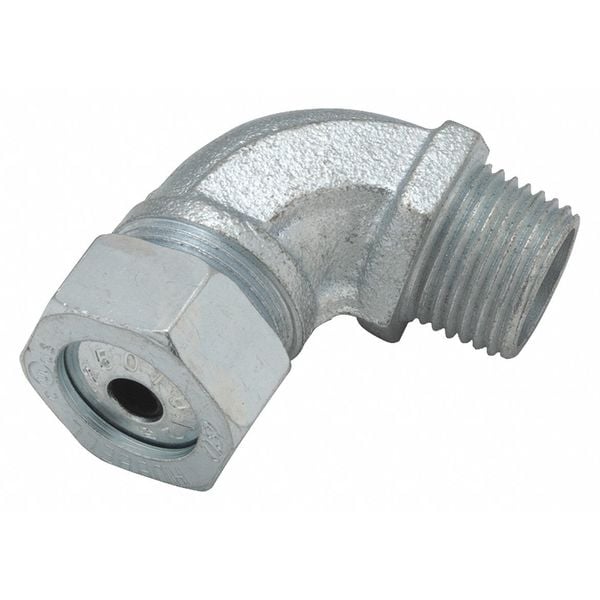

Cord Connector, Silver, 1-51/64" L, Iron
| Item | Enhanced Rating Cord Connector |
|---|---|
| Hub Size | 1/2 in MNPT |
| Material | Iron |
| Color | Silver |
| Length | 1-51/64 in |
| Standards | cULus |
| Style - Connector | Degrees |
| Material - External Strain Relief | No External Strain Relief |
| Material - Cord Connector | Malleable Iron |
| Box Connection | 1/2 in MNPT |
| Number of Cords | 1 |
| Body Color - Cord Connector | Silver |
| Strain Relief Type | No External Strain Relief |
| Length - Box to End of Connector | 1-3/8 in |
| Conduit Size | 1/2" |
| Connector Type | Straight |
| Gland Color Code | Imprinted |
| Item - Cord Connector | Enhanced Rating Cord Connector |
| Insulated | No |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Length - External Strain Relief | No External Strain Relief |
| Cord Dia. Range | 1/4 to 0.38 in |
| Environmental Rating | Liquid Tight |
| For Minimum Cable OD | 1/4 in |
| Grommet Color Code | Imprinted |
| Body Color | Silver |
| Form Size | F1 |
| Compatible Conduit Trade Size | 1/2 in |
| For Maximum Cable OD | 3/8 in |
| Thread Size | 1/2 in |
| Liquid Tight | Yes |
| Thread Type | NPT Thread |
| Collar Material | Iron |
| Resistance Properties | Corrosion Resistant |
| Connection Orientation | 90 Degrees |
| Body Material | Iron |
| Grommet Material | Neoprene |
| Conduit Type | Liquidtight |
| Cable Range | 0.250 - 0.375 in |
| Hazardous Rating(s) | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Trade Size | 1/2 in |
| Width | 1.047 in |
| Size | 1.8 in x 1.047 in x 1.899 in |
| Certified Listed | cULus Listed |
| Each - Width | 1.047 in |
| Dimensions | 1.8 in x 1.047 in x 1.899 in |
| Height | 1.899 in |
| Configuration | 90 Degrees |
| Fitting Type | Connectors |
| Standard | cULus Listed |
| Product Type | Commercial Fittings |
| Environmental Conditions | Wet Location |
| Features | All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for indentification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; 1/2 in. to 3/4 in. Malleable Iron bodies; 1/2 in. to 3/4 in. Steel nuts; Additional sizes available |
| Package Quantity | 1 |
