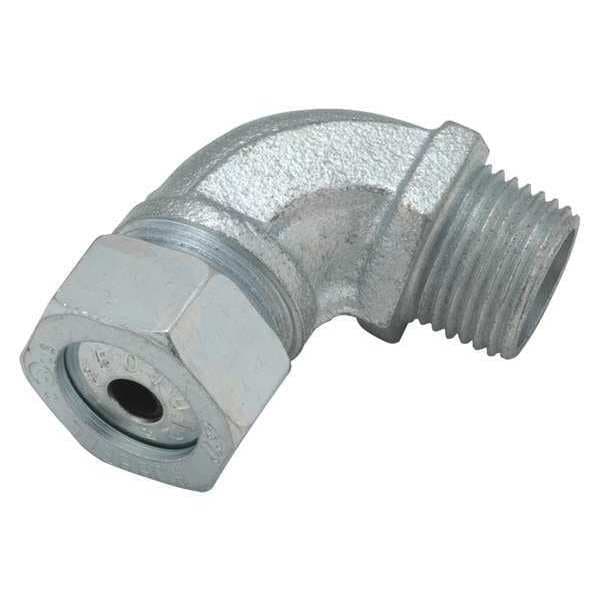

Cord Connector, Silver, 3-1/4" L, Iron
| Item | Enhanced Rating Cord Connector |
|---|---|
| Hub Size | 3/4 in MNPT |
| Material | Iron |
| Color | Silver |
| Length | 3-1/4 in |
| Standards | cULus |
| Body Color - Cord Connector | Silver |
| Strain Relief Type | No External Strain Relief |
| Insulated | No |
| Number of Cords | 1 |
| Style - Connector | Degrees |
| Cord Dia. Range | 0.45 to 0.56 in |
| Length - Box to End of Connector | 1-7/16 in |
| Material - Cord Connector | Malleable Iron |
| Conduit Size | 3/4" |
| Length - External Strain Relief | No External Strain Relief |
| Gland Color Code | Green |
| Connector Type | Straight |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Material - External Strain Relief | No External Strain Relief |
| Box Connection | 3/4 in MNPT |
| Item - Cord Connector | Enhanced Rating Cord Connector |
| Compatible Conduit Trade Size | 3/4 in |
| Body Material | Iron |
| Collar Material | Iron |
| For Minimum Cable OD | 0.45 in |
| Grommet Material | Neoprene |
| Environmental Rating | Liquid Tight |
| For Maximum Cable OD | 0.56 in |
| Connection Orientation | 90 Degrees |
| Resistance Properties | Corrosion Resistant |
| Grommet Color Code | Green |
| Thread Size | 3/4 in |
| Thread Type | NPT Thread |
| Body Color | Silver |
| NEMA Rating | NEMA 4 |
| Liquid Tight | Yes |
| Cable Range | .45 - .56 in |
| Certified Listed | cULus Listed |
| Standard | cULus Listed |
| Each - Width | 1.44 in |
| Trade Size | 3/4 in |
| Application | For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cable;RACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations |
| Dimensions | 3-1/4 in x 1.44 in x 1.44 in |
| Height | 1.44 in |
| Width | 1.44 in |
| Size | 3-1/4 in x 1.44 in x 1.44 in |
| Features | Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available |
| Package Quantity | 1 |
