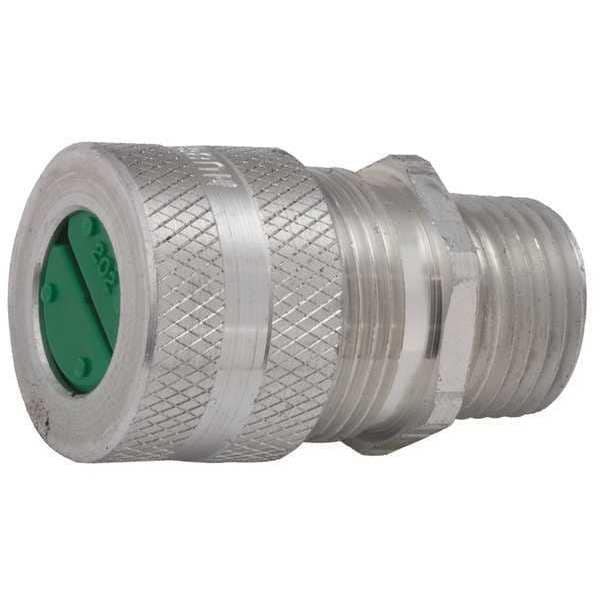

Cord Connector, Silver, 7/8" L, Aluminum
| Item | Enhanced Rating Cord Connector |
|---|---|
| Hub Size | 1/2 in MNPT |
| Material | Aluminum |
| Color | Silver |
| Length | 7/8 in |
| Standards | UL 514B |
| Box Connection | 1/2 in MNPT |
| Gland Color Code | Black |
| Item - Cord Connector | Enhanced Rating Cord Connector |
| Material - Cord Connector | Aluminum |
| Style - Connector | Straight |
| Conduit Size | 1/2" |
| Hazardous Location Rating | Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2 |
| Connector Type | Straight |
| Cord Dia. Range | 1/4 to 0.31 in |
| Material - External Strain Relief | No External Strain Relief |
| Body Color - Cord Connector | Silver |
| Strain Relief Type | No External Strain Relief |
| Number of Cords | 1 |
| Insulated | No |
| Length - Box to End of Connector | 15/16 in |
| Length - External Strain Relief | No External Strain Relief |
| Body Material | Aluminum |
| Grommet Material | Neoprene |
| Compatible Conduit Type | Cord Connector |
| For Minimum Cable OD | 1/4 in |
| Thread Size | 1/2 in |
| Grommet Color Code | Black |
| Compatible Conduit Trade Size | 1/2 in |
| For Maximum Cable OD | 0.312 in |
| Thread Type | NPT Thread |
| Collar Material | Aluminum |
| Environmental Rating | Liquid Tight |
| Form Size | F1 |
| Body Color | Silver |
| Liquid Tight | Yes |
| Connection Orientation | Straight |
| Fitting Type | Connectors |
| Hazardous Rating(s) | Class I, Division 2;Class II Division 1 & 2;Class III, Division 1 & 2 |
| Dimensions | 0.88 in x 1.36 in x 1.36 in |
| Color Code | Black |
| Size | 0.88 in x 1.36 in x 1.36 in |
| Height | 1.36 in |
| Environmental Conditions | Wet Location |
| Conduit Type | Liquidtight |
| Product Type | Commercial Fittings |
| Configuration | Straight |
| Cable Range | .250 - .312 in |
| Width | 1.36 in |
| Industry Standard(s) | UL 514B |
| Certified Listed | UL Listed;CSA Certified |
| Trade Size | 1/2 in |
| Standard | UL 514B |
| Each - Width | 1.36 in |
| Features | Aluminum construction provides a corrosion resistant installation; Innovative GOTHCA® ring incorporates a split hinge design to prevent friction and to provide strain relief; Neoprene grommet; Knurled compression nut allows the fittings to be hand tightened to UL requirements; GOTCHA® color-coded ring provides fast identification of cord size; Additional colors and sizes available |
| Package Quantity | 1 |
