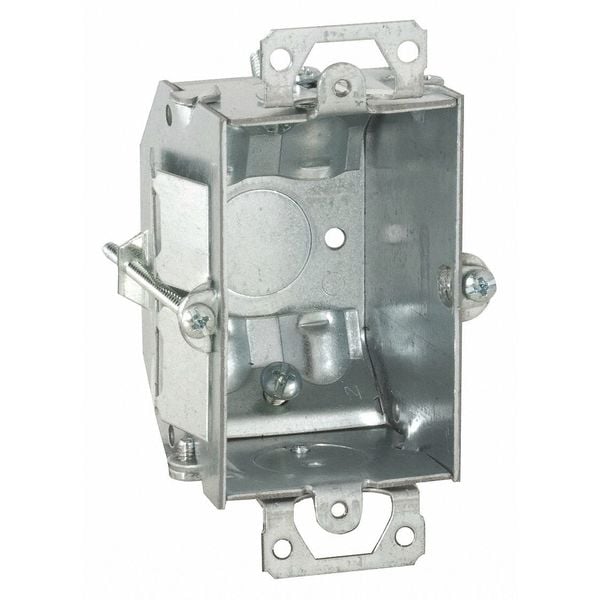

Electrical Box, 10.5 cu in, Switch Box Type, 1 Gang, Steel
| Item | Electrical Box |
|---|---|
| Capacity | 10.5 cu in |
| Box Type | Switch |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Conduit Size | 1/2 in |
| Color | Gray |
| Height | 4.24 in |
| Width | 2-1/2 in |
| Depth | 2-1/4 in |
| Features | 3 in. x 2 in., 2-1/4 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Beveled corner boxes are designed to prevent the clamp screws from protruding into back wall; 4 clamps designed for use with non-metallic sheathed cable; Supplied with one 1/2 in. knockout; Plaster ears ang Tigergrip clips for "cut-in" or "old work" applications; 10.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls |
| Knockouts | 1/2 in |
| Wiring System | Sheathed Cable |
| Fire Resistance | Yes |
| Standard | UL Listed |
| Certified Listed | UL Listed |
| Opening Shape | Rectangular |
| Package Quantity | 1 |
