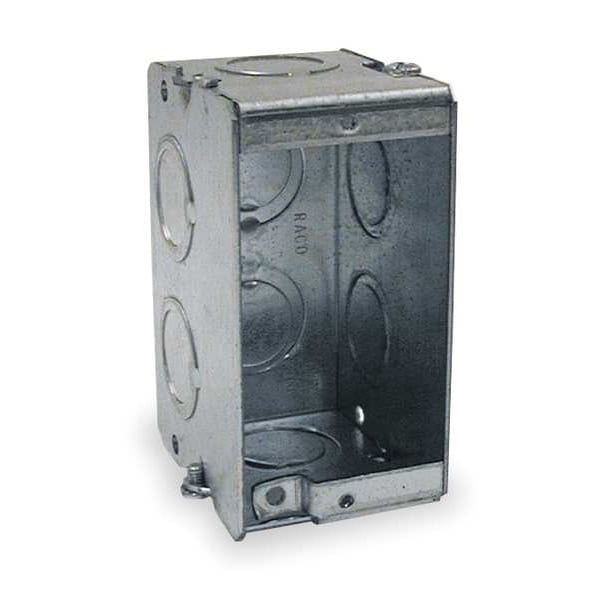

Electrical Box, 15.5 cu in, Masonry Box Type, 1 Gang, Steel
| Item | Electrical Box |
|---|---|
| Capacity | 15.5 cu in |
| Box Type | Masonry |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Overall Width | 2-3/16 in |
| Overall Depth | 2-1/2 in |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Silver |
| Number of 1/2 In. Back Knockouts | 2 |
| Number of 3/4" Back Knockouts | 2 |
| Standards | UL File E195978 |
| Nominal Length | 3-3/4 in |
| Number of 3/4" Side Knockouts | 6 |
| Number of 1/2 In. Side Knockouts | 6 |
| Nominal Width | 1-15/16 in |
| Bracket Type | Not Applicable |
| Nominal Depth | 2-1/2 in |
| Height | 3-7/8 in |
| Depth | 2-1/2 in |
| Width | 2.21 in |
| Knockouts | 1/2 in - 3/4 in Combination (TKO) |
| Features | Rugged welded design does not fall apart during construction.; Gangable design allows installer to build unlimited number of gangs to hold multiple devices.; Rectangular shape fits square cuts in block.; Standard 1/2" and 3/4" TKO® knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #675 fits 2-1/2" and #676 fits 3-1/2" depth.; Forward mounted grounding provision allows for easy installation of grounding pigtail.; Standard wall plates can be used.; Supplied with eight (8) 1/2 & 3/4 in. concentric knockouts; Gangable design allows construction of multiple gang box from one product; Ground is located near the front of the box for installer's convenience; 15.5 cu. in. capacity; For 4 in. block walls |
| Certified Listed | UL Listed |
| Standard | UL Listed |
| Wiring System | Conduit |
| Opening Shape | Rectangular |
| Overall Height | 3-7/8 in |
| Number of 1/2 in Back Knockouts | 2 |
| Number of 1/2 in Side Knockouts | 6 |
| Box Height | 3-7/8 in |
| Hub Type | Not Applicable |
| For Box Application | Masonry |
| Number of 3/4 in Back Knockouts | 2 |
| Box Width | 2-3/16 in |
| Number of 3/4 in Side Knockouts | 6 |
| Box Depth | 2-1/2 in |
| Box Diameter | Not Applicable |
| Package Quantity | 1 |
