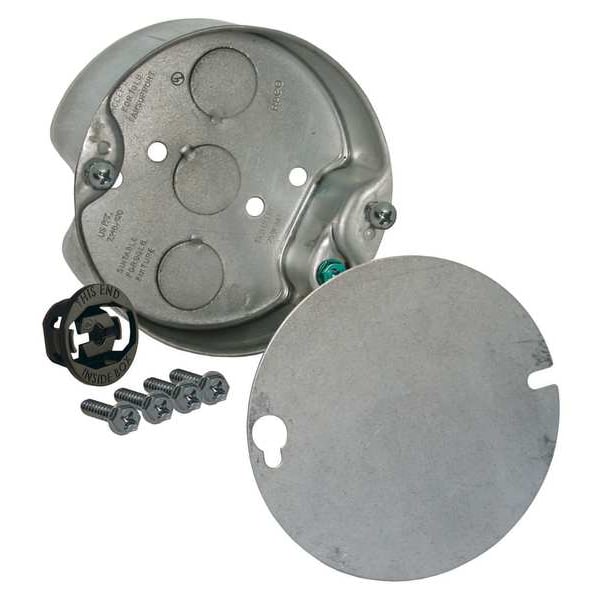

Electrical Box, 15.8 cu in, Ceiling Box Type, 1 Gang, Galvanized Steel, Round Shape
| Item | Electrical Box |
|---|---|
| Capacity | 15.8 cu in |
| Box Type | Ceiling |
| Number of Gangs | 1 Gang |
| Material | Galvanized Steel |
| Width | 4 in |
| Depth | 1-1/2 in |
| Opening Shape | Round |
| Conduit Size | 1/2 in |
| Color | Silver |
| Nominal Width | 4 in |
| Clamp Type | (4) NM-B |
| Number of 1/2 In. Side Knockouts | 2 |
| Bracket Type | Not Applicable |
| Nominal Depth | 1-1/2 in |
| Number of 1/2 In. Back Knockouts | 1 |
| Nominal Length | 4 in |
| Standards | UL Listed |
| Rated | Fan Rated |
| Height | 4 in |
| Knockouts | 1/2 in |
| Features | Constructed of pre-galvanized steel; No protruding ground screw or fan mounting screws allows easy installation; Steel cover protects wires from damage, paint, and drywall compound during installation; Maximum support load for ceiling fans 70 lbs. and 150 lbs. for static light fixtures; #10-32, 1 in. long ceiling fan screws provided and provision for #8-32 fixture mounting screw; Easy to follow instructions and mounting hardware included; Supplied with five 1/2 in. knockouts; 15.8 cu. in. capacity |
| Raised Ground | Yes |
| Ceiling Fan Rated | Fan Rated |
| Fixture Lbs. | 150 lb. |
| Standard | UL Listed |
| Fixture Type | Ceiling;Light |
| Hub Type | Not Applicable |
| Number of 1/2 in Side Knockouts | 2 |
| Number of 1/2 in Back Knockouts | 1 |
| Overall Depth | 1-1/2 in |
| Box Diameter | 4 in |
| Box Height | Not Applicable |
| Box Shape | Round |
| Box Width | Not Applicable |
| Overall Width | 4 in |
| Box Depth | 1-1/2 in |
| Overall Height | 4 in |
| Package Quantity | 1 |
