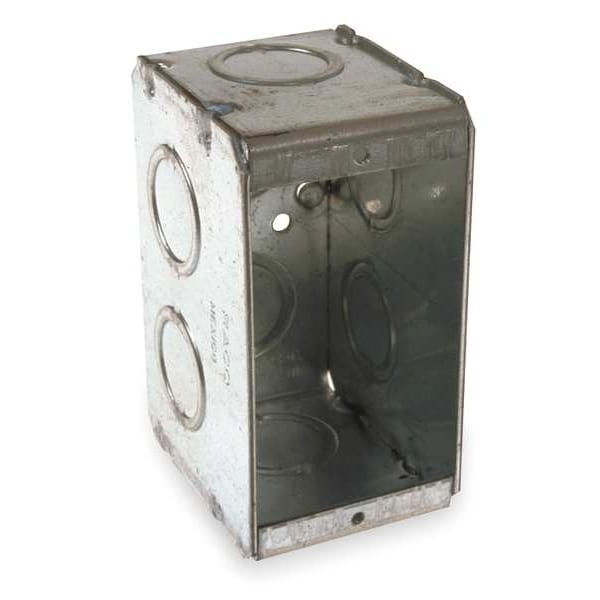

Electrical Box, 16 cu in, Masonry Box Type, 1 Gang, Galvanized Zinc, Rectangular Shape
| Item | Electrical Box |
|---|---|
| Capacity | 16 cu in |
| Box Type | Masonry |
| Number of Gangs | 1 Gang |
| Material | Galvanized Zinc |
| Width | 1.969 in |
| Depth | 2-1/2 in |
| Opening Shape | Rectangular |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Silver |
| Number of 1/2 In. Back Knockouts | 2 |
| Bracket Type | Not Applicable |
| Number of 1/2 In. Side Knockouts | 6 |
| Nominal Width | 1-31/32 in |
| Standards | UL 514-A Listed, File E195978 |
| Number of 3/4" Side Knockouts | 6 |
| Number of 3/4" Back Knockouts | 2 |
| Nominal Depth | 2-1/2 in |
| Nominal Length | 3-3/4 in |
| Height | 3-3/4 in |
| Features | Rugged welded design does not fall apart during construction.; Available from one to six gang configurations in both 2-1/2" and 3-1/2" depths.; Rectangular shape fits square cuts in block.; Large volume design allows for additional work room inside the box.; Standard 1/2" and 3/4" concentric knockouts.; Device ears inside the box prevent mortar from getting in the device holes.; Steel voltage partition #971 fits all 2-1/2" or 3-1/2" depths.; Standard wall plates can be used.; Supplied with eight 1/2 & 3/4 in. concentric knockouts; Welded steel construction; Standard device spacing with tapped 6-32 holes for devices; 16 cu. in. capacity; For 4 in. block walls |
| Knockouts | 1/2 - 3/4 in Concentric |
| Standard | UL Listed |
| Wiring System | Conduit |
| Number of 3/4 in Side Knockouts | 6 |
| Number of 3/4 in Back Knockouts | 2 |
| Hub Type | Not Applicable |
| Number of 1/2 in Side Knockouts | 6 |
| Box Width | 2 in |
| Overall Height | 3-3/4 in |
| Overall Depth | 2-1/2 in |
| Overall Width | 2 in |
| For Box Application | Masonry |
| Number of 1/2 in Back Knockouts | 2 |
| Box Diameter | Not Applicable |
| Box Height | 3-3/4 in |
| Box Depth | 2-1/2 in |
| Package Quantity | 1 |
