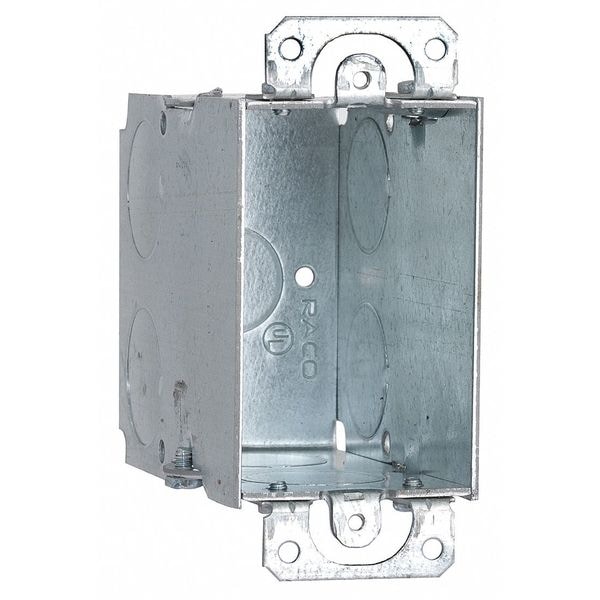

Electrical Box, 18 cu in, Switch Box Type, 1 Gang, Steel
| Item | Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | Switch |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Length | 3-1/2 in |
| Overall Width | 2 in |
| Overall Depth | 3-1/2 in |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Silver |
| Nominal Length | 3-1/2 in |
| Number of 1/2 In. Side Knockouts | 0 |
| Number of 1/2 In. Back Knockouts | 1 |
| Number of 3/4" Back Knockouts | 0 |
| Rated | Electrical Box |
| Nominal Width | 2 in |
| Bracket Type | Not Applicable |
| Standards | UL |
| Number of 3/4" Side Knockouts | 8 |
| Number of Hubs | 0 |
| Nominal Depth | 3-1/2 in |
| Number of 1" Side Knockouts | 0 |
| Height | 4.219 in |
| Width | 2 in |
| Depth | 3-1/2 in |
| Knockouts | 1/2 in;3/4 in |
| Features | 3 in. x 2 in., 3-1/2 in. deep; Plaster ears allow a box to be used in "old work" applications; Gangable switch boxes offer the option of constructing a box to hold two or more devices; With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable; Supplied with one 1/2 in. and eight 3/4 in. knockouts; Plaster ears allow a box to be used in "old work" applications; 18.0 cu. in. capacity; Acceptable for use in 2-hour fire rated walls |
| Standard | UL Listed |
| Fire Resistance | Yes |
| Wiring System | Conduit |
| Certified Listed | UL Listed |
| Plaster Ears | Yes |
| Opening Shape | Rectangular |
| Hub Type | Not Applicable |
| Box Depth | 3-1/2 in |
| Number of 3/4 in Back Knockouts | 0 |
| Number of 1 in Side Knockouts | 0 |
| Box Width | 2 in |
| For Construction Type | Remodel |
| Box Height | 4-1/4 in |
| Overall Height | 4-1/4 in |
| Number of 3/4 in Side Knockouts | 8 |
| Box Diameter | Not Applicable |
| Number of 1/2 in Back Knockouts | 1 |
| Number of 1/2 in Side Knockouts | 0 |
| Package Quantity | 1 |
