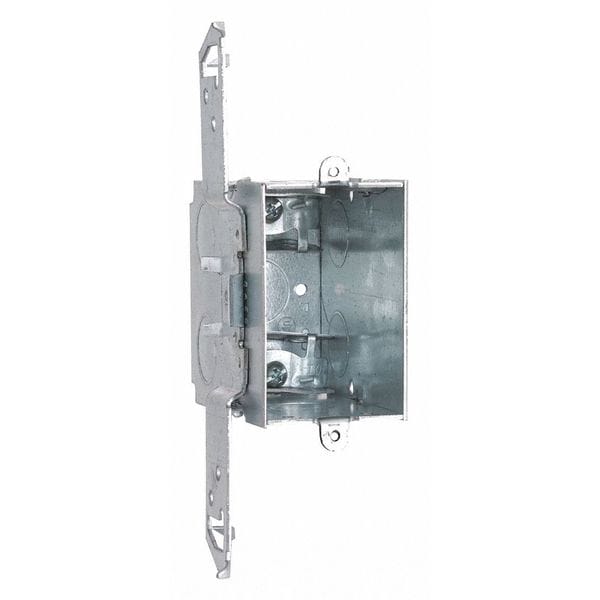

Electrical Box, 18 cu in, Switch Box Type, 1 Gang, Steel
| Item | Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | Switch |
| Number of Gangs | 1 Gang |
| Material | Steel |
| Conduit Size | 1/2 in |
| Color | Gray |
| Height | 7 in |
| Width | 2.203 in |
| Depth | 3-1/2 in |
| Knockouts | 1/2 in |
| Features | 3 in. x 2 in., 3-1/2 in. deep; Includes TS side-mount bracket with gauging tabs and recessed nailing spurs; BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Supplied with seven 1/2 in. knockouts; 18 cu. in. capacity; Acceptable for use in 2-hour fire rated walls |
| Wiring System | Armored Cable/Metal Clad, Flex, MCI-A |
| Fire Resistance | Yes |
| Standard | UL Listed |
| Certified Listed | UL Listed |
| Opening Shape | Rectangular |
| Package Quantity | 1 |
