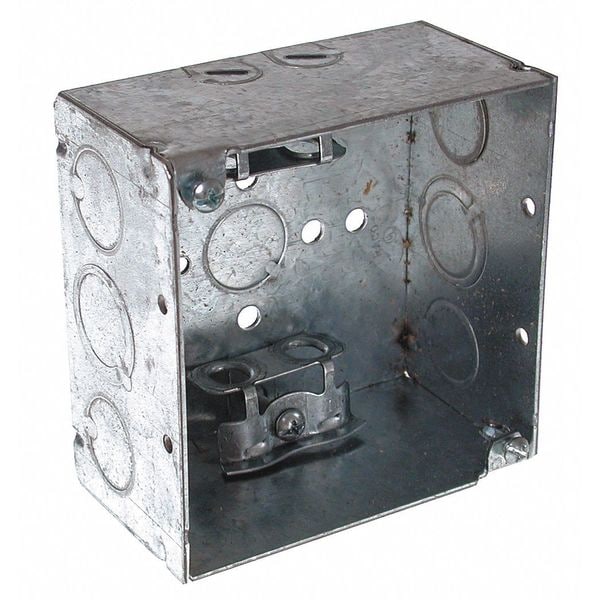

Electrical Box, 30.3 cu in, Square Box Type, 2 Gangs, Galvanized Steel, Square Shape
| Item | Electrical Box |
|---|---|
| Capacity | 30.3 cu in |
| Box Type | Square |
| Number of Gangs | 2 Gangs |
| Material | Galvanized Steel |
| Overall Width | 4 in |
| Overall Depth | 2-1/8 in |
| Box Shape | Square |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Silver |
| Number of 1/2 In. Back Knockouts | 1 |
| Number of 3/4" Side Knockouts | 2 |
| Standards | UL |
| Nominal Length | 4 in |
| Nominal Width | 4 in |
| Clamp Type | Armored |
| Nominal Depth | 2-1/8 in |
| Number of 1/2 In. Side Knockouts | 6 |
| Bracket Type | Not Applicable |
| Height | 4 in |
| Depth | 2-1/8 in |
| Width | 4 in |
| Features | Welded steel construction; 4 in. square x 2-1/8 in. deep; Cable clamps suitable for use with steel and alum armored cable, MCI cable, MCI-A cable, and flexible conduit; TKO® Knockouts allow for design and installation flexibility; Supplied with five 1/2 in. and two 1/2-3/4 in. TKO® knockouts; Combination Phillips/slotted screw heads; 30.3 cu. in. capacity; Acceptable for use in 2-hour fire rated wall |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO) |
| Wiring System | Armored Cable/Metal Clad, Flex, MCI-A |
| Standard | UL Listed |
| Fire Resistance | Yes |
| Opening Shape | Square |
| Box Diameter | Not Applicable |
| Number of 3/4 in Side Knockouts | 2 |
| Hub Type | Not Applicable |
| Number of 1/2 in Back Knockouts | 1 |
| Number of 1/2 in Side Knockouts | 6 |
| Overall Height | 4 in |
| Box Depth | 2-1/8 in |
| Box Height | 4 in |
| Box Width | 4 in |
| Package Quantity | 1 |
