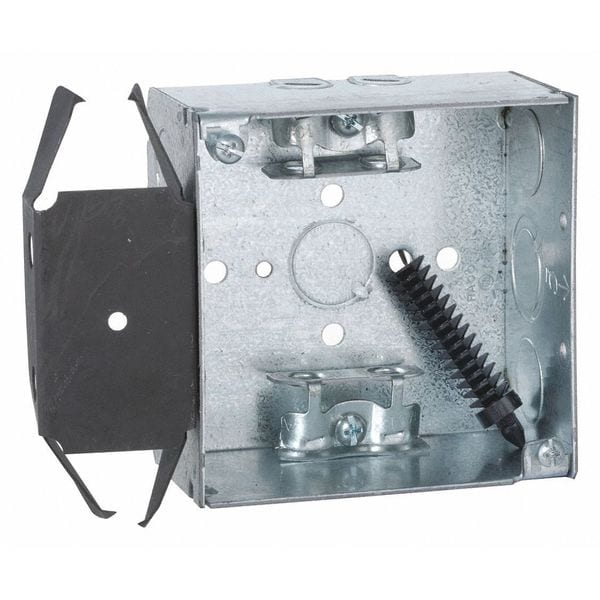

Electrical Box, 30.3 cu in, Wall Box Type, 2 Gangs, Steel
| Item | Electrical Box |
|---|---|
| Capacity | 30.3 cu in |
| Box Type | Wall |
| Number of Gangs | 2 Gangs |
| Material | Steel |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Gray |
| Width | 5-1/2 in |
| Height | 4-5/8 in |
| Depth | 2-1/8 in |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO) |

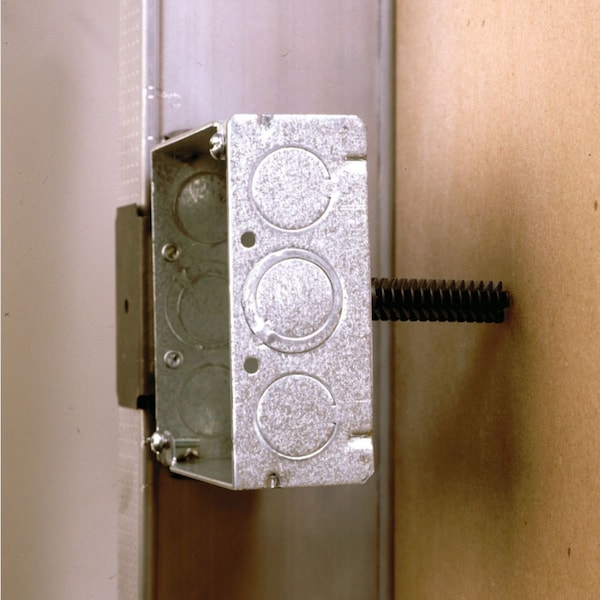

| Features | Welded steel construction with "MS" BOX-LOC® bracket which allows for positioning on either side of stud; 4 in. square x 2-1/8 in. deep; BOX-LOC® Bracket is a snap to install. Place the bracket on the open side of the stud first. Slots in the bracket engage the lip of the stud; BX clamps provided for steel and alum armored cable, MCI cable, MCI-A cable, and flexible conduit; TKO® Knockouts allow for design and installation flexibility; Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts; Combination Phillips/slotted screw heads; 29.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls |
| Collection Name | BOX-LOC® |
| Fire Resistance | Yes |
| Certified Listed | UL Listed |
| Wiring System | Armored Cable/Metal Clad, Flex, MCI-A |
| Standard | UL Listed |
| Opening Shape | Square |
| Package Quantity | 1 |
