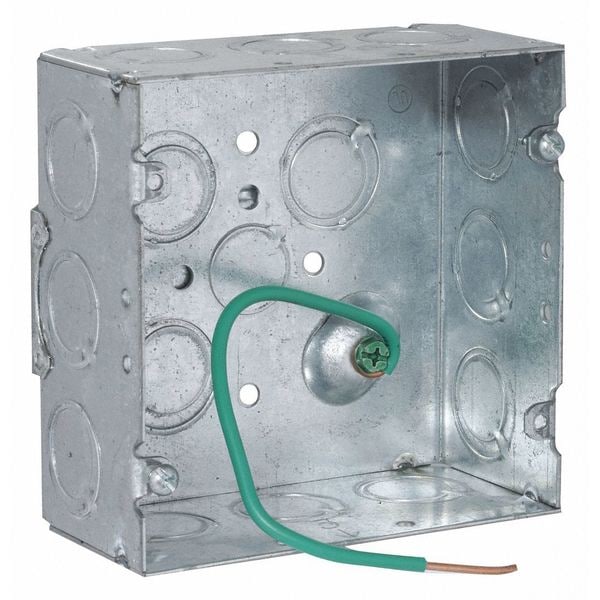

Electrical Box, 42 cu in, Wall Box Type, 2 Gangs, Steel, Square Shape
| Item | Electrical Box |
|---|---|
| Capacity | 42 cu in |
| Box Type | Wall |
| Number of Gangs | 2 Gangs |
| Material | Steel |
| Width | 4.688 in |
| Depth | 2-1/8 in |
| Opening Shape | Square |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Gray |
| Height | 4.688 in |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO) |
| Features | Combination screw heads provide for faster installation.; TKO knockouts allow for design and installation flexibility.; UBS Support - Welded to box, preset bend points to work with wall thickness 2-1/2 in. to 6 in.; Welded steel construction; 4-11/16 in. square x 2-1/8 in. deep; Supplied with one 1/2 in. and fifteen 1/2 and 3/4 in. TKO knockouts; Combination Phillips/slotted screw heads; 8 in. #12 stranded pigtail |
| Certified Listed | UL Listed |
| Standard | UL Listed |
| Wiring System | Conduit |
| Raised Ground | Yes |
| Package Quantity | 1 |
