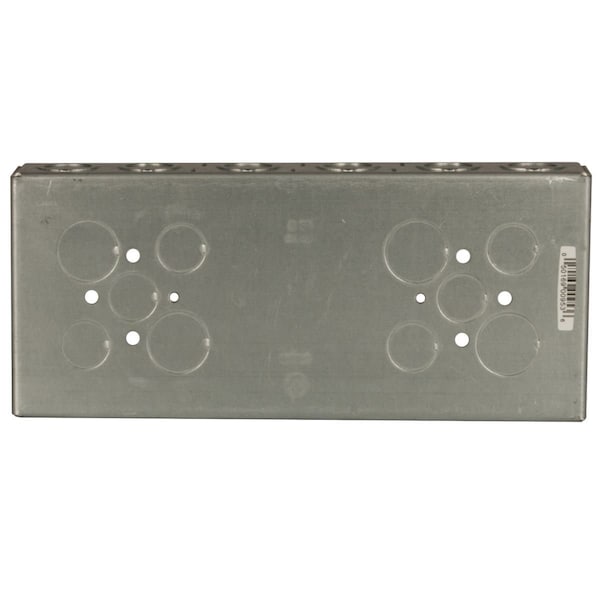

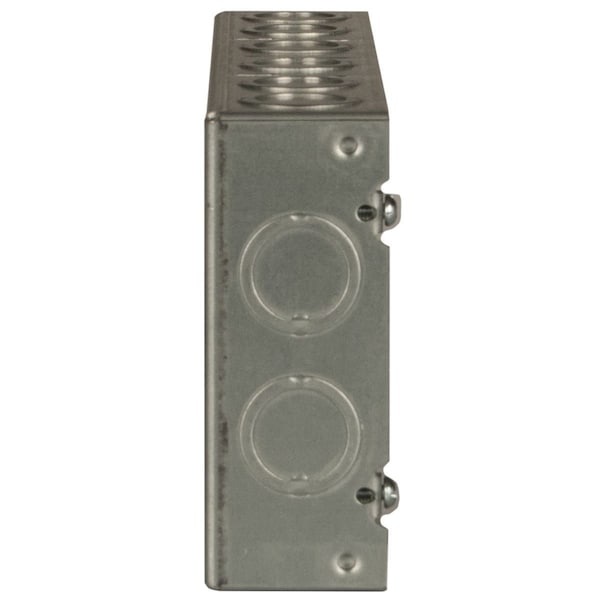

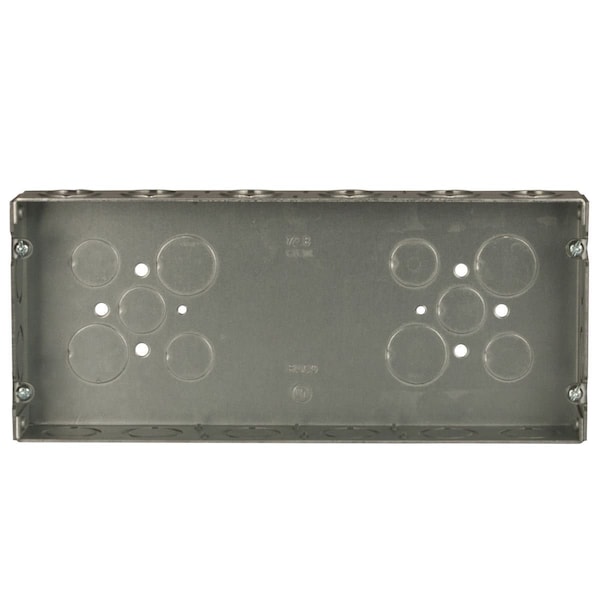

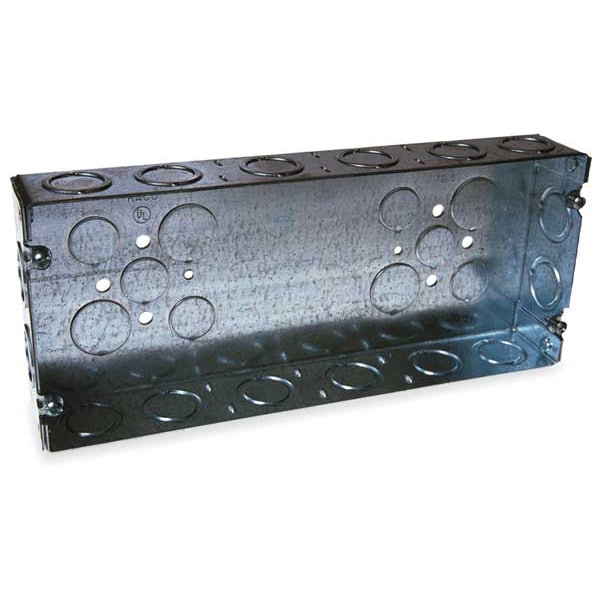

Electrical Box, 72.8 cu in, Gang Box Type, 4 Gangs, Galvanized Steel
| Item | Electrical Box |
|---|---|
| Capacity | 72.8 cu in |
| Box Type | Gang |
| Number of Gangs | 4 Gangs |
| Material | Galvanized Steel |
| Overall Width | 10-1/2 in |
| Overall Depth | 1-5/8 in |
| Conduit Size | 1/2 in, 3/4 in |
| Color | Silver |
| Nominal Length | 4-1/2 in |
| Standards | UL |
| Number of 3/4" Back Knockouts | 4 |
| Number of 1/2 In. Back Knockouts | 6 |
| Number of 1/2 In. Side Knockouts | 16 |
| Number of 3/4" Side Knockouts | 16 |
| Bracket Type | Not Applicable |
| Nominal Width | 10-7/16 in |
| Nominal Depth | 1-5/8 in |
| Depth | 1-5/8 in |
| Width | 10.49 in |
| Height | 4.53 in |
| Knockouts | 1/2 in;3/4 in;1/2-3/4 in Concentric |
| Features | Gang boxes save time in installation, no need to gang boxes together.; Have 1/2" and 3/4" concentric KO's for use with a wide variety of wiring methods.; Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.; Accepts two styles of covers, flat and 3/4" raised device cover.; Use low voltage partitions #947 or #949.; Spacing of devices match standard wall plates; Used where multiple wiring devices are to be centrally located; Supplied with sixteen (16) 1/2 & 3/4 in. concentric knockouts; 3/4 in. raised mud rings and flat covers available for all sizes; 72.8 cu. in. capacity |
| Certified Listed | UL Listed |
| Wiring System | Conduit |
| Standard | UL Listed |
| Opening Shape | Rectangular |
| Overall Height | 4-1/2 in |
| Box Depth | 1-5/8 in |
| Number of 1/2 in Side Knockouts | 16 |
| Box Diameter | Not Applicable |
| Box Height | 4-1/2 in |
| Number of 3/4 in Back Knockouts | 4 |
| Box Width | 10-1/2 in |
| Hub Type | Not Applicable |
| Number of 3/4 in Side Knockouts | 16 |
| Number of 1/2 in Back Knockouts | 6 |
| Package Quantity | 1 |
