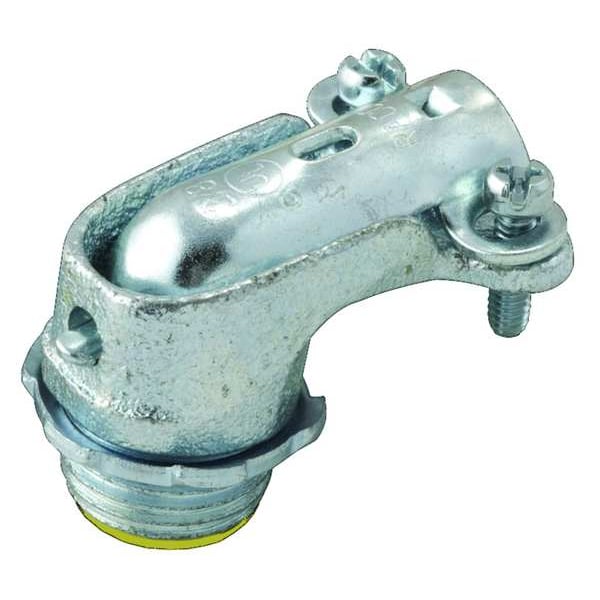

Flexible AC/MC Grounding Connector, 1 in, Push-On, Iron, Zinc Plated, Gray
| Item | Flexible AC/MC |
|---|---|
| Conduit Fitting Type | Grounding Connector |
| Trade Size | 1 in |
| Connection Type | Push-On |
| Material | Iron |
| Finish | Zinc Plated |
| Color | Gray |
| Overall Length | 2-27/32 in |
| Insulated | Yes |
| Box Connection | Threaded Electrical Box Connection |
| Insulation Type | Insulated |
| Use With - Metallic Building Cable | AC, Flexible Conduit, MC |
| Standards | UL Listed |
| Connector Type | 90 Degrees |
| Style - Connector | 90 Degrees |
| Length | 2.844 in |
| Application | Commercial Fittings |
| Cable Clamping Method | Squeeze Clamp |
| Width | 2.344 in |
| Features | All malleable construction ensures mechanical protection for the raceway; Electro zinc plated for added corrosion protection; UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation; Additional sizes available |
| Thread Size | 1"-11 1/2 |
| Height (In.) | 2.23 |
| Weight | 0.62 lb |
| Overall Height | 2-7/32 in |
| Compatible Knockout Trade Size | 1 in |
| Connector Style | 90 Degrees |
| Resistance Properties | Corrosion Resistant |
| Overall Width | 2-11/32 in |
| Connection Orientation | 90 Degrees |
| Conduit Type | Flexible Metal Conduit |
| Fitting Type | Connectors |
| Certified Listed | cULus Listed |
| Dimensions | 2.844 in x 2.344 in x 2.23 in |
| Height | 2.23 in |
| Package Quantity | 1 |
