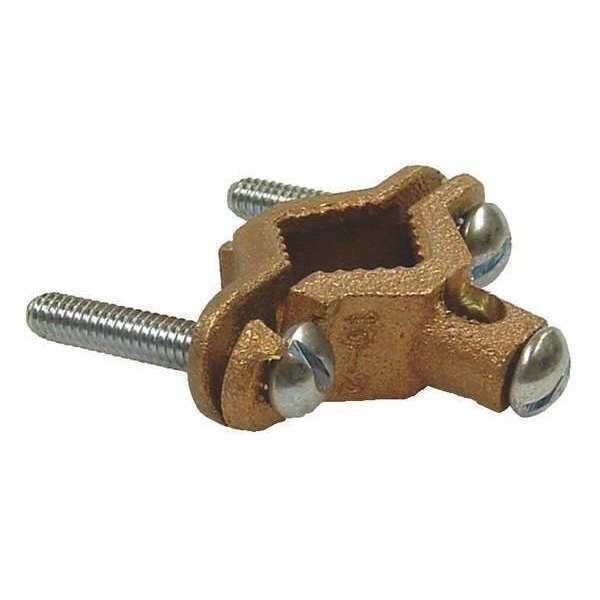

Ground Clamp, Conduit Size 1 1/4 to 2 In
| Item - Grounding Connector | Grounding Connector |
|---|---|
| Item | Grounding Connector |
| Type - Grounding Connector | Mechanical |
| Length | 0.938 in |
| Wire Size - Grounding | 10 AWG Solid to 2 AWG Stranded |
| Material | Bronze |
| Standards | UL 514B, UL Listed |
| Grounding Wires Connected To | 1 1/4 in to 2 in Pipe |
| Material - Grounding Connector | Cast Bronze |
| Number of Wires - Grounding | 1 |
| Conductor Size | 10 Solid to 2 Stranded |
| Description/Special Features | Corrosion Resistance |
| Material of Construction | Bronze Cast |
| Rod Dia. | 1.375" to 2.5" |
| Package Quantity | 1 |
| For Use With | Conduit, Ground Rods, Grounding Wire, Water Pipes |
| Features | Bronze cast construction assures ground path continuity and provides corrosion resistance; Additional sizes available |
| Grounding Wire Size | 10 AWG SOL to 2 AWG STR |
| Overall Height | 3-1/8 in |
| For Maximum Ground Conductor Wire Size | 2 AWG |
| For Minimum Ground Conductor Wire Size | 10 AWG |
| Overall Width | 3-9/16 in |
| Accessory Type | Ground Clamp |
| Overall Length | 15/16 in |
| Width | 3.594 in |
| Application | For use with grounding wire or conduit to water pipes or ground rods |
| Height | 3-1/8 in |
| Each - Width | 3.594 in |
| Standard | UL 514B |
| Industry Standard(s) | UL 514B |
| Conductor Range | #2 AWG to #10AWG |
| Dimensions | 0.938 in x 3.563 in x 3-1/8 in |
| Certified Listed | UL Listed |
