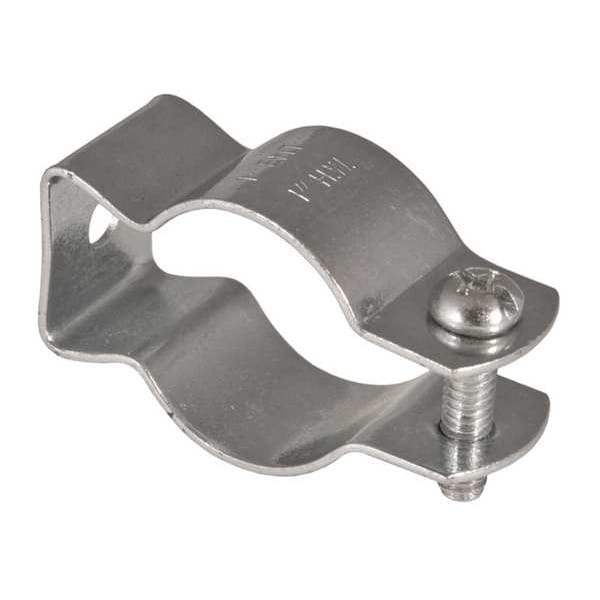

Hanger, Conduit; EMT; Pipe Use, 1-1/4 in; 1-1/2 in, Steel, Galvanized
| Item | Hanger |
|---|---|
| Nominal/Conduit Pipe | 1-1/4 in, 1-1/2 in |
| Material | Steel |
| Finish | Galvanized |
| For Use With | Conduit; EMT; Pipe |
| Wire Range | 14/4 AWG to 10/3 AWG |
| Length | 1-3/4 in |
| Includes | Retained Bolt |
| Sub-Category | Hangers |
| Thread Size | 1/4-20 |
| Flange Thickness | 1/8 in to 1/4 in |
| Height | 1-7/32 in |
| Number of Pieces | 100 |
| Width | 1 in |
| Overall Length | 1-3/4 in |
| Color | Gray |
| Standards | UL/CUL |
| Description/Special Features | Retained Bolt and Threaded Hole, Eliminating The Need for A Bolt |
| Steel Thickness | Not Applicable |
| Mounting Hole Diameter | 0.33 in |
| Compatible Conduit Trade Size | 1-1/4 in, 1-1/2 in |
| Compatible Nominal Conduit/Pipe Size | 1-1/4 in, 1-1/2 in |
| Compatible Pipe Size | 1-1/4 in, 1-1/2 in |
| Resistance Properties | Corrosion Resistant |
| Overall Width | 1 in |
| Load Capacity | 80 lb |
| Overall Height | 3-9/32 in |
| Compatible Conduit Type | EMT, IMC, RMC |
| Weight | 0.14 lb |
| Standard | cULus Listed |
| Max Load Lbs. | 80 lb |
| Each - Width | 1 in |
| Trade size | Rigid/IMC 1-1/4 in, EMT 1-1/2 |
| Product Type | Commercial Fittings |
| Fitting Type | Hangers |
| Environmental Conditions | Wet Location |
| Certified Listed | cULus Listed |
| Rigid/IMC Size | 1-1/4 in |
| Dimensions | 1-3/4 in x 1 in x 3.26 in |
| Hanger Size | 3 |
| Features | Hangers are supplied with a retained bold and threaded hole eliminating the need for a nut; The design allows for quick and easy installation using a screwdriver or nut driver; Pregalvanized finish provides corrosion protection; Additional sizes available |
| Package Quantity | 1 |
