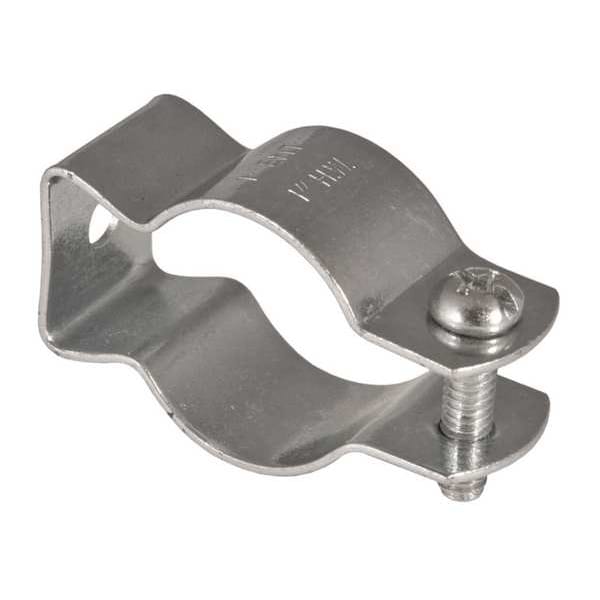

Hanger, Conduit; EMT; Pipe Use, 1/2 in, Steel, Galvanized
| Item | Hanger |
|---|---|
| Nominal/Conduit Pipe | 1/2 in |
| Material | Steel |
| Finish | Galvanized |
| For Use With | Conduit; EMT; Pipe |
| Height | 2 in |
| Length | 1 in |
| Wire Range | 14/2 AWG to 10/4 AWG |
| Sub-Category | Hangers |
| Flange Thickness | 1/8 in to 1/4 in |
| Standards | UL/CUL |
| Number of Pieces | 100 |
| Thread Size | 1/4-20 |
| Includes | Retained Bolt |
| Color | Gray |
| Overall Length | 1 in |
| Width | 3/4 in |
| Description/Special Features | Retained Bolt and Threaded Hole, Eliminating The Need for A Bolt |
| Mounting Hole Diameter | 0.26 in |
| Overall Height | 2 in |
| Load Capacity | 50 lb |
| Steel Thickness | Not Applicable |
| Weight | 0.06 lb |
| Resistance Properties | Corrosion Resistant |
| Overall Width | 3/4 in |
| Compatible Nominal Conduit/Pipe Size | 1/2 in |
| Compatible Pipe Size | 1/2 in |
| Compatible Conduit Type | EMT, IMC, RMC |
| Compatible Conduit Trade Size | 1/2 in |
| Product Type | Commercial Fittings |
| Certified Listed | cULus Listed |
| Rigid/IMC Size | 1/2 in |
| Environmental Conditions | Wet Location |
| Standard | cULus Listed |
| Max Load Lbs. | 50 lb |
| Each - Width | 0.73 in |
| Fitting Type | Hangers |
| Dimensions | 1 in x 0.73 in x 1.98 in |
| Features | Hangers are supplied with a retained bold and threaded hole eliminating the need for a nut; The design allows for quick and easy installation using a screwdriver or nut driver; Pregalvanized finish provides corrosion protection; Additional sizes available |
| Package Quantity | 1 |
