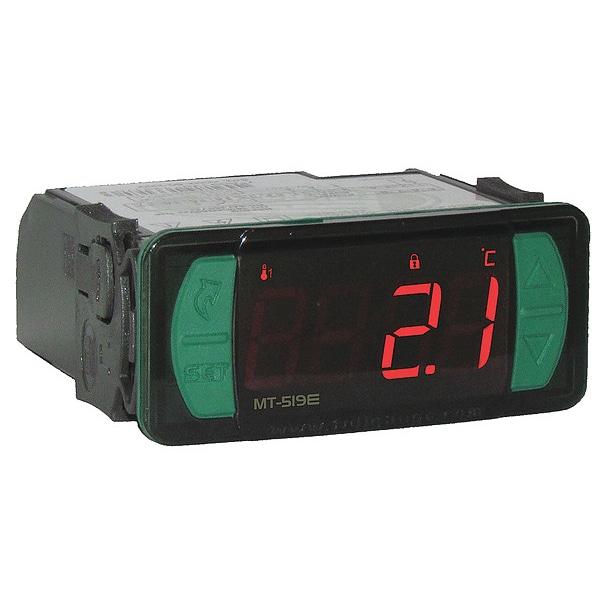

Temp Control, Dual, Heat or Cool, -50-392F
| Item | Temperature Control |
|---|---|
| Voltage | 115 to 230VAC |
| Input Voltage | 100 to 240V AC |
| Includes | Audible Alarm, Configurable Digital Input, Digital Filter |
| Power Consumption | 5.7 VA |
| Switch Type | DPDT |
| Standards | CE, NSF, UL |
| Agency Compliance | CE, NSF, UL |
| Switch Action | Close on Rise, Open on Rise |
| Application | Boiler Control, Freezers, Heating Control, Hot and Cold Counters |
| Dimensions | 76 x 34 x 77 mm (WxHxD) |
| Contact Form | DPDT |
| NEMA Rating | Not Applicable |
| Temperature Control Function | Cool, Heat |
| Overall Depth | 2-3/4 in |
| Horsepower @ 240V AC | 1 HP |
| Overall Width | 2-3/4 in |
| Variable Output Voltage | No |
| IP Rating | IP65 |
| Maximum Control Temperature | 392 deg F |
| Minimum Control Temperature | -50 deg F |
| Overall Height | 1-1/8 in |
| Housing Material | Polyethilene |
| Ambient Humidity | 10% to 90% UR |
| Number of Sensors Included | 2 |
| Product Type | Temperature Control |
| Horsepower @ 120V AC | 1 hp |
| Maximum Temperature Differential Setting | 36 deg F |
| Number of Stages | Dual |
| Compatible with Series | Universal |
| Minimum Temperature Differential Setting | 1 Degrees F |
| Display Type | Digital |
| Package Quantity | 1 |
