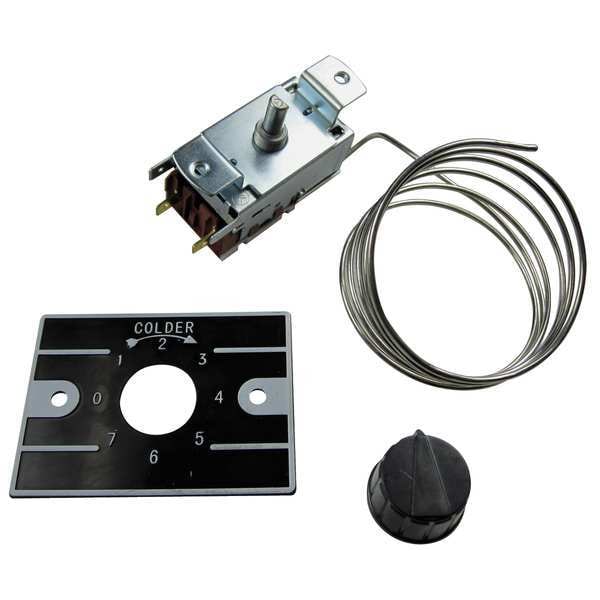

Freezer Control, Closes on Rise, SPST, -12 Degrees to 15 Degrees F, Normal Open, 120/240V AC
| Switch Type | Normally Open |
|---|---|
| Switch Action | Closes on Rise |
| Voltage | 120V AC, 240V AC |
| Full Load Amps | 16 |
| Locked Rotor Amps | 80 A |
| Capillary Length (In.) | 47-1/4 |
| Capillary Type | Capillary |
| Warm On | 15 |
| Cold Off | -11 |
| Control Range (F) | -12 to 15 |
| Includes | Faceplate, Mounting Hardware |
| For Use With | Freezer Cabinet |
| Height (In.) | 2-1/2 |
| Application | Designed for Temperature Cold Control |
| Type | Medium Temp. |
| Item | Freezer Control |
| Normally On (F) | 10 |
| Depth (In.) | 1-1/8 |
| Normally Off (F) | -4 |
| Width (In.) | 1-1/8 |
| Overall Length | 1-1/8 in |
| Control Temperature - Maximum | 15 deg F |
| Standards | UL, CSA, ENEC |
| Overall Height | 2-1/2 in |
| Cold On Temperature | -0.4 deg F |
| Contact Form | SPST |
| Full Load Current | 16 A |
| Warm On Temperature | 15.8 deg F |
| Normally On Temperature | 10 deg F |
| Capillary Length | 47-1/4 in |
| Cold Off Temperature | -11.2 deg F |
| Normally Off Temperature | -4 deg F |
| Product Type | Refrigerator/Freezer Control |
| Control Temperature - Minimum | -12 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
